VBR (Variable Bit Rate) – bit rate will vary depending on the video source, aiming to be
around target bit rate, but never exceeding peak bit rate
Options for Resolution are
D1 - 704 x 480 pixels
CIF - 352 x 240 pixels in size; one quarter the resolution of D1
Image Rate is the frames per second; it can be between 1 and 25.
Target Bit Rate is the bit rate at which the stream will aim to run. The maximum bit rate per stream
must not exceed 2 Mbps.
Peak Bit Rate is the maximum bit rate for the stream; it has to be at least as high as the target bit
rate. The maximum peak bit rate per stream must not exceed 2.5 Mbps.
For GOP enter a value between 1 and 255.
If Copy is checked the values from the channel will be copied to all the other channels.
Click Apply to apply changes to the page and then click Save to e1600 option at the top of the page
to save your changes to the unit.

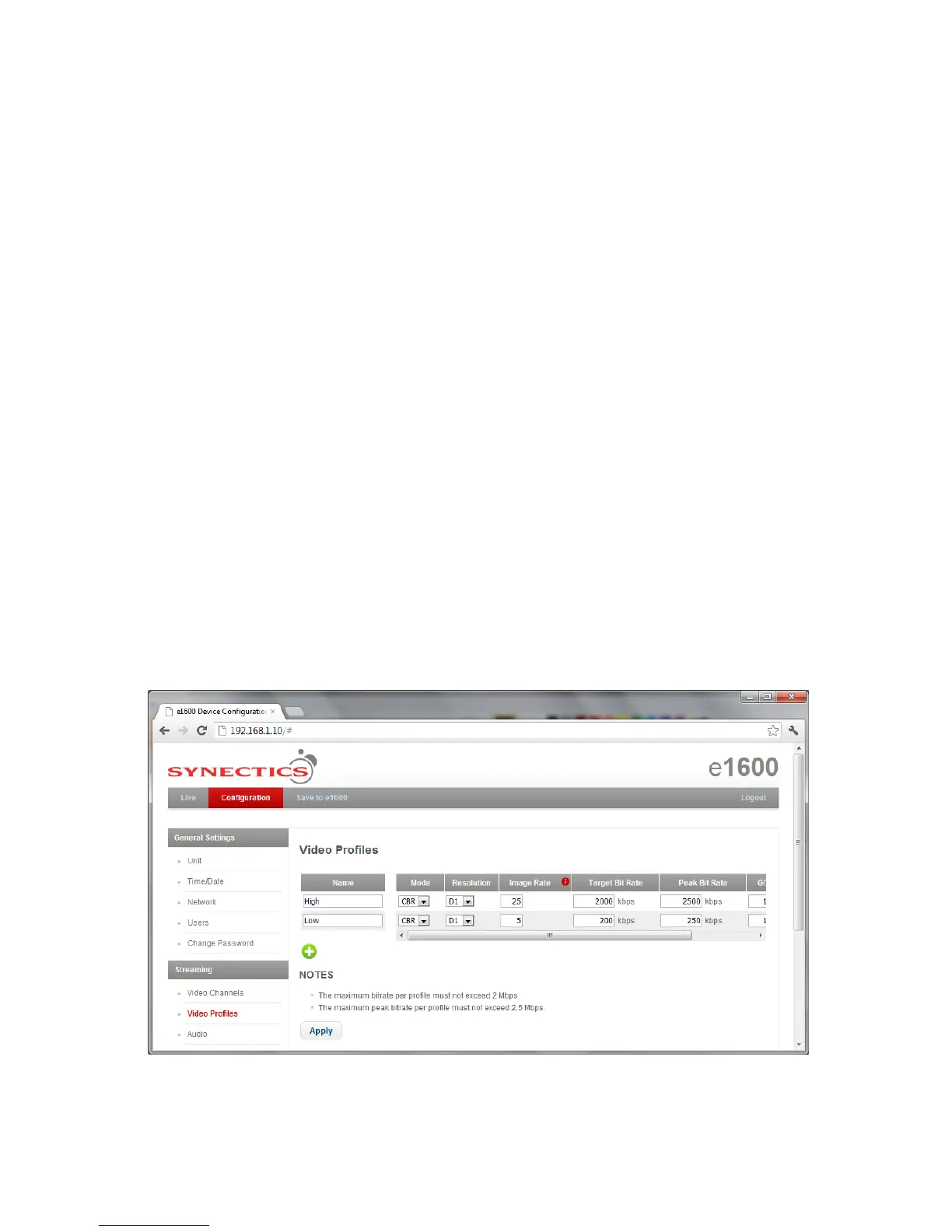

3.4.2 Video Profiles
To access the Video Profiles page from the menu on the left select Video Profiles under
Streaming.
There are two predefined profiles: High and Low.
