Calibrating the Autosampler CE
4–16 TA I NSTRUMENTS DSC A UTOSAMPLER CE
SIDE VIEW
GRIPPERS
CELL DIMPLE
PAN
IN OPEN POSITION,
FINGERS SHOULD BE
EQUIDISTANT FROM
THE PAN.
ALL FOUR
FINGERS SHOULD
CONTACT THE
PAN AT THE
SAME TIME
WHEN YOU
PRESS THE GRIP
KEY.
TOP VIEW
7. Select tray position 1 by pressing ENTER.
The Autosampler CE picks up the pan in
tray position 1 and begins moving toward the
cell.
8. Press ESCAPE/CLEAR when the Auto-
sampler CE reaches the DSC cell area.
9. Use the motion keys to position the pan in its
correct calibration position (see Table 4.1).
Press the RELEASE and GRIP keys repeat-
edly to ensure that the fingers can firmly
grasp the pan, and watch carefully to ensure
that each finger contacts the pan at the same
time (see Figure 4.2).

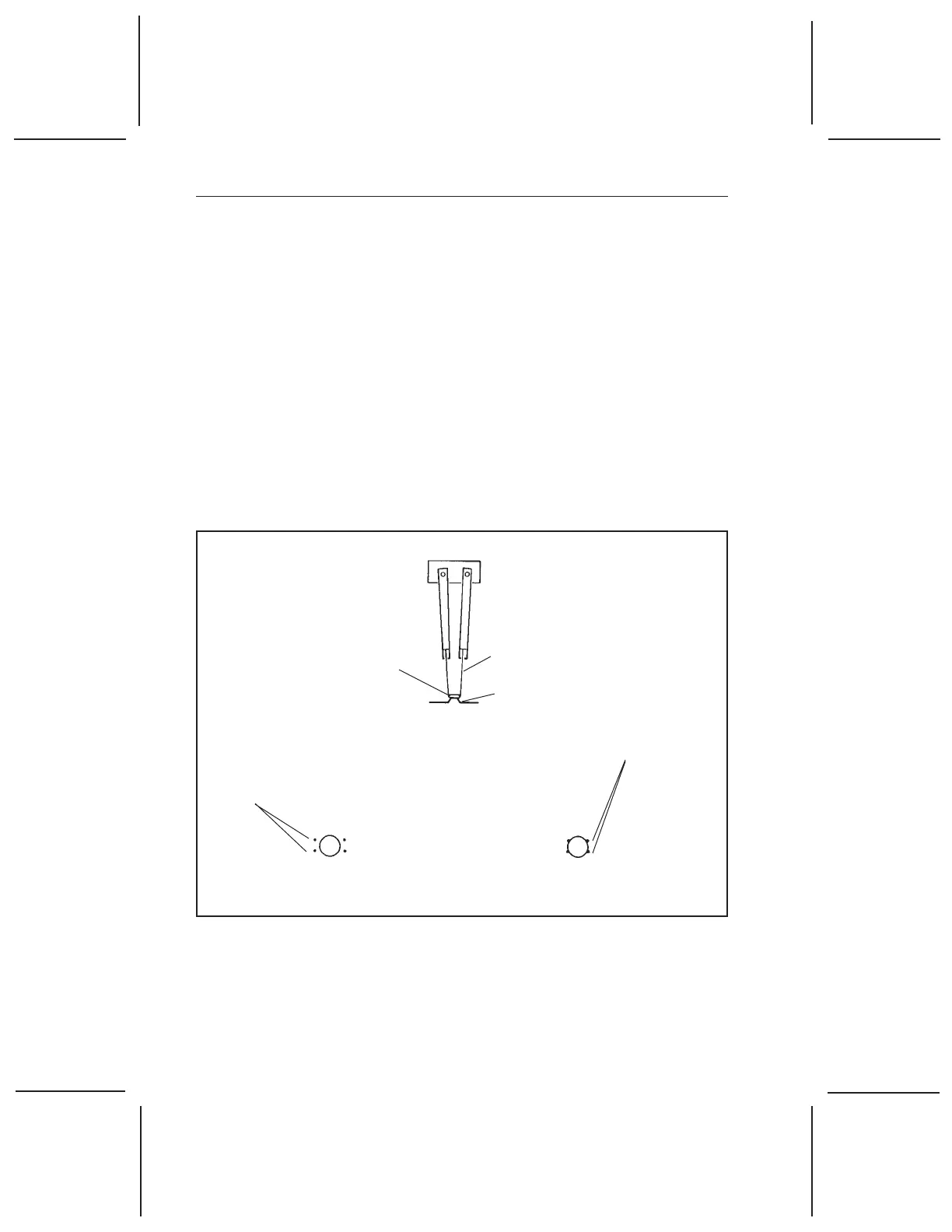

Figure 4.2
Calibrating a
Cell Pan Position
