TAC AB, 1998-10-23 0-004-7614-0 (GB), 5:7 (8)
TAC 2413 Handbook Installation
No OFF ON
5.5 Commissioning
The following should be done before switching on the power:
1. Check that sensors and actuators are connected correctly.

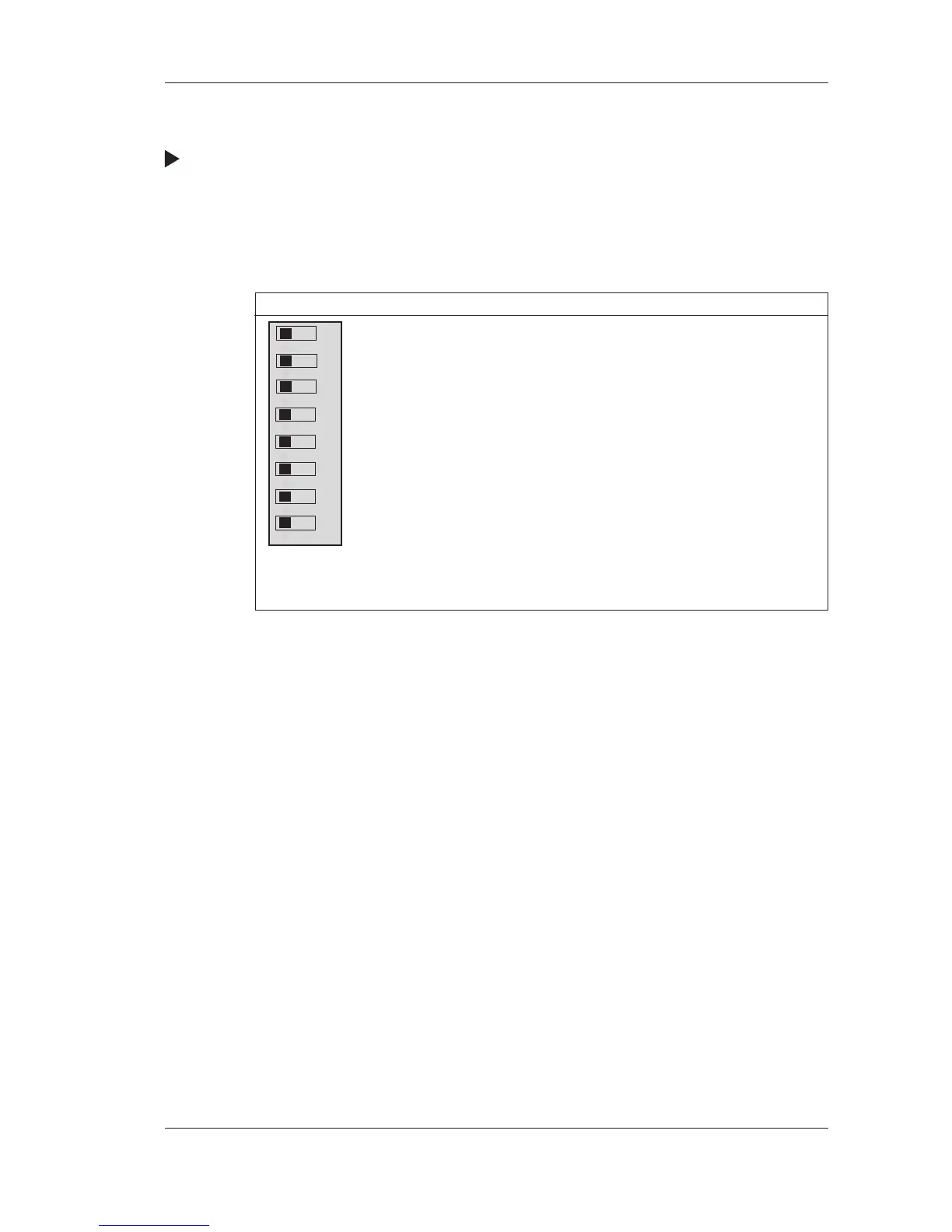

2. Set the DIP switch to configuration. Access to the DIP switch
can be gained by pulling out the quick reference and removing
the plastic sheet in front of it.
12345678
1 Supply air control Room/return air control
2 Room control (1=on) Return air control (1=on)
3 HEX Mixed air damper
4 HEX at stop = 0% (3=off) HEX at stop = 100% (3=off)
5 Waterborne heating Electric heating
6 Waterborne cooling DX cooling (only if 1=on)
7 2–10 V output for 0–10 V output for
heating and cooling heating and cooling
8 Warm start. Resets the hardware, but all the settings except
for the date and time are retained. If all settings are to be reset
(cold start), please refer to the section Cold start in Chapter 7.
3 Switch on the power to the controller.
4 Set the clock, see Chapter 4.
5 Check that all the temperatures are reasonable. Follow the
instructions of the quick reference.
6 Make sure the controller is running in timed operation mode.
There is a description of how to set the operating modes in the
quick reference.
The controller should now control using the default para-
meters. If any of the DIP switches has been altered after
having commissioned the controller, perform a cold start.
Please refer to the section Cold start in Chapter 7.
