TAC 2413 - Connection

5:4 (8), 0-004-7614-0 (GB) TAC AB, 1998-10-23
TAC 2413 Handbook Installation
5.2 Connection
Connect the cables to the controller as shown in the wiring diagram.
WARNING! All power cables should be installed
by an authorised electrician.
All equipment which is connected to the controller must comply
with the following standards:
• EN 60 742 (or other applicable safety standard) for air
handlers which provide ELV-type power supply (normally 24
V AC) to the controller and other connected equipment.
• EN 61 010 or IEC 950 (or other applicable safety standard) for
computers, modems and other equipment supplied by 230 V
mains.
The controller has 25 cable entries in the back. Make sure that
power and signal cables are drawn through separate entries and
are kept well apart.
Wires to the controller should be held in place by e.g. clamps.
The rail with three screws in the middle of the back is insulated. It
can be used as measurement neutral. A connection must then be
made between the rail and measurement neutral (M) in the
terminal block.
There should be a switch in order to break the power to the
controller. It does not have to be a separate switch for the controller;
it may also cut the supply voltage to the installation. The function of
the switch should be marked clearly.
* Does not need to be connected
** K1: contactor TF01
K2: contactor FF01

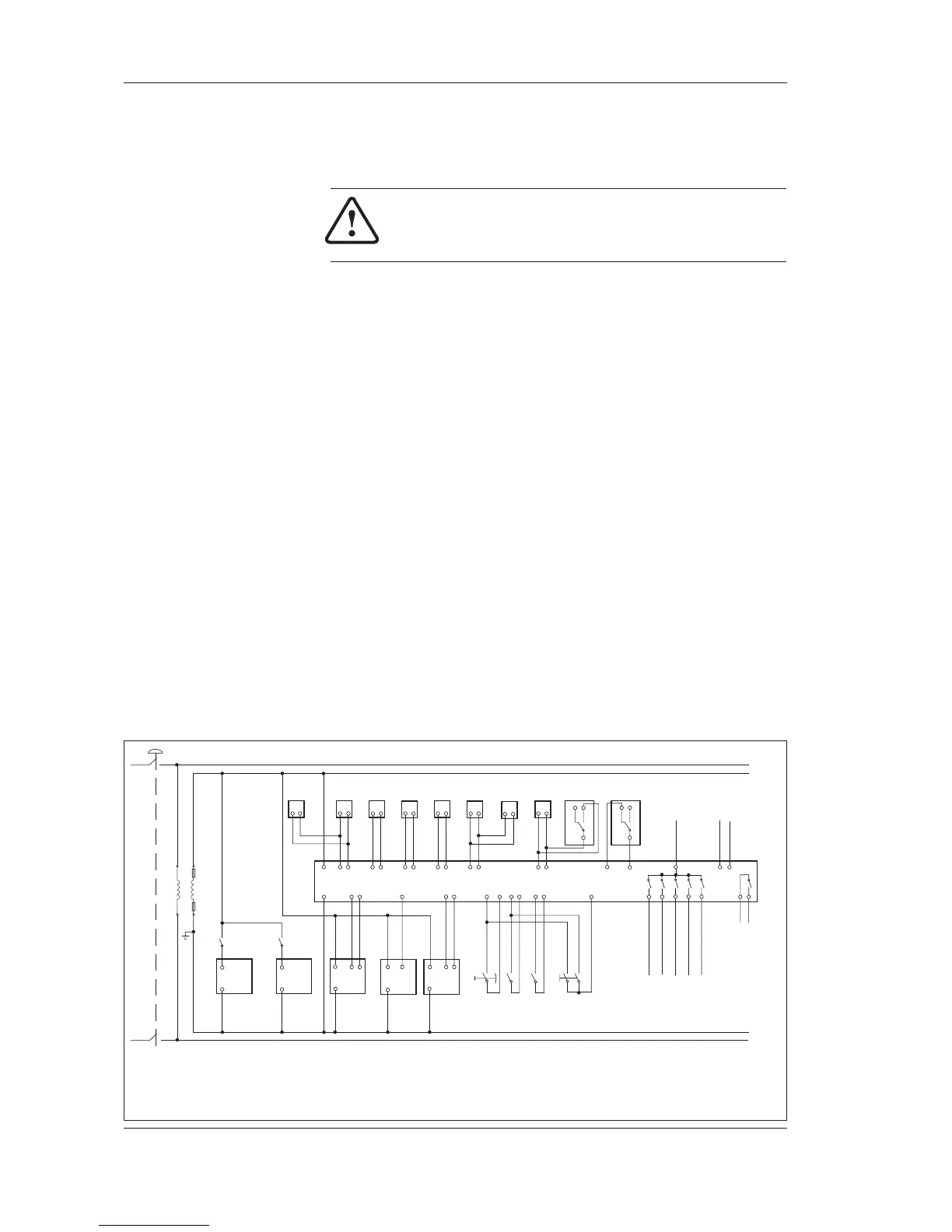

Wiring diagram with the valve actuators M300, M750
