5:6 (8), 0-004-7614-0 (GB) TAC AB, 1998-10-23
TAC 2413 Handbook Installation
Y1
15
Y2
14
12
K6
11
K6
9
G
8
G0
7
6
KC1
5
K1
4
K2
3
K3
2
K4
1
K5
M
M
U1
U2
U3
M
B1
M
B2
B3
B4
X3
U4
X1
X2
M
L
R
16
15
14
13
12
11
9
8
7
6
5
4
3
2
1
10
16
13
10
Y3

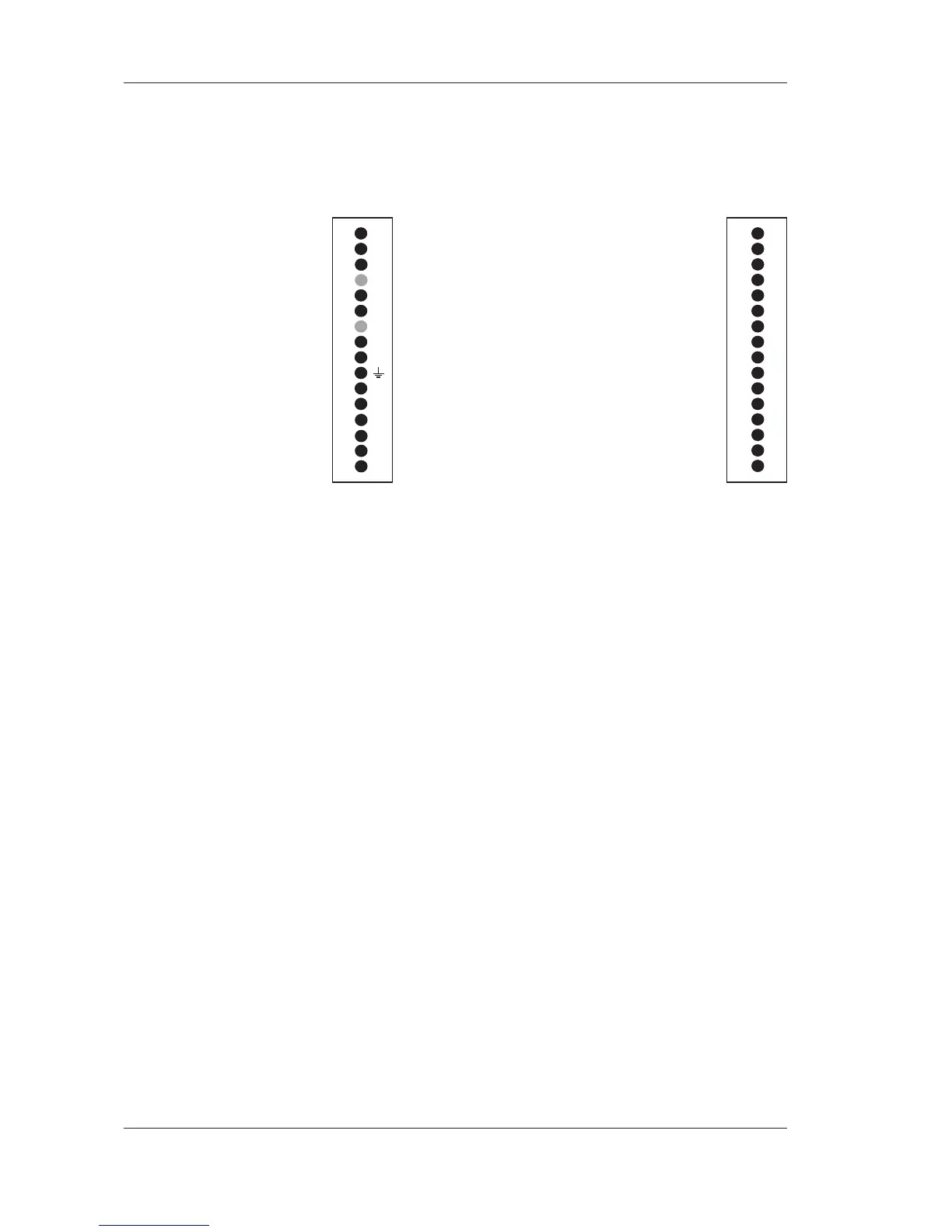

5.3 Terminal blocks
The location of the terminal blocks in the back of the controller
can be seen in the figure below.
If the SPC signal is connected from equipment which has a
different transformer, then the G0s from each transformer must be
connected to one another.
The rail with three screws in the middle of the back is insulated. It
can be used as measurement neutral. A connection must then be
made between the rail and measurement neutral (M) in the
terminal block.
The terminal for protective grounding only provides a connection
for a possible protective wire and has no connection in the device.
Clamp the cables together using straps or the like next to the
terminals in order to limit their mobility.
5.4 Cable lengths
The following applies when the TAC 24 V transformer is installed
in direct connection to TAC 2413:
• The cables to G, G0 and other terminal blocks on TAC
24 V actuators must not exceed 50 m in length, and shall have
a minimum cross-sectional area of 0,8 mm
2
. If the cables ex-
ceed 50 m in length, then the minimum cross-sectional area
should be 1,5 mm
2
.
• Cables connected to the terminal blocks KC1 and K1 to K6
must not exceed 100 m, and shall have a minimum cross-
sectional area of 1,5 mm
2
.
• Cables connected to terminal blocks types B, U, and X must
not exceed 200 m, with a minimum cross-sectional area of
0,5 mm
2
.
Heating coil Measurement neutral
HEX/heat recovery Measurement neutral
Cooling coil Return air temp. sensor
Exhaust air temp. sensor
Sum alarm SPC/CO
2
Sum alarm Measurement neutral
Supply air temp. sensor
24 V AC, supply Measurement neutral
24 V AC, zero Outdoor temp. sensor
Protective grounding Room temp. sensor
Power supply, relays K1 to K5Return sensor/frost protection
Supply air fan, TF Battery overheat., pump heating
Return air fan, FF Fan alarm
Full speed Extended operation (1/2) timer
Pump, heating coil Extended operation (1/1) timer
Pump, cooling coil/DX cooling Measurement neutral
