TAJIMA TEHX-C - Switching of Power Supply Specification

CHAPTER 10 ELECTRO-COMPONENT PARTS
103

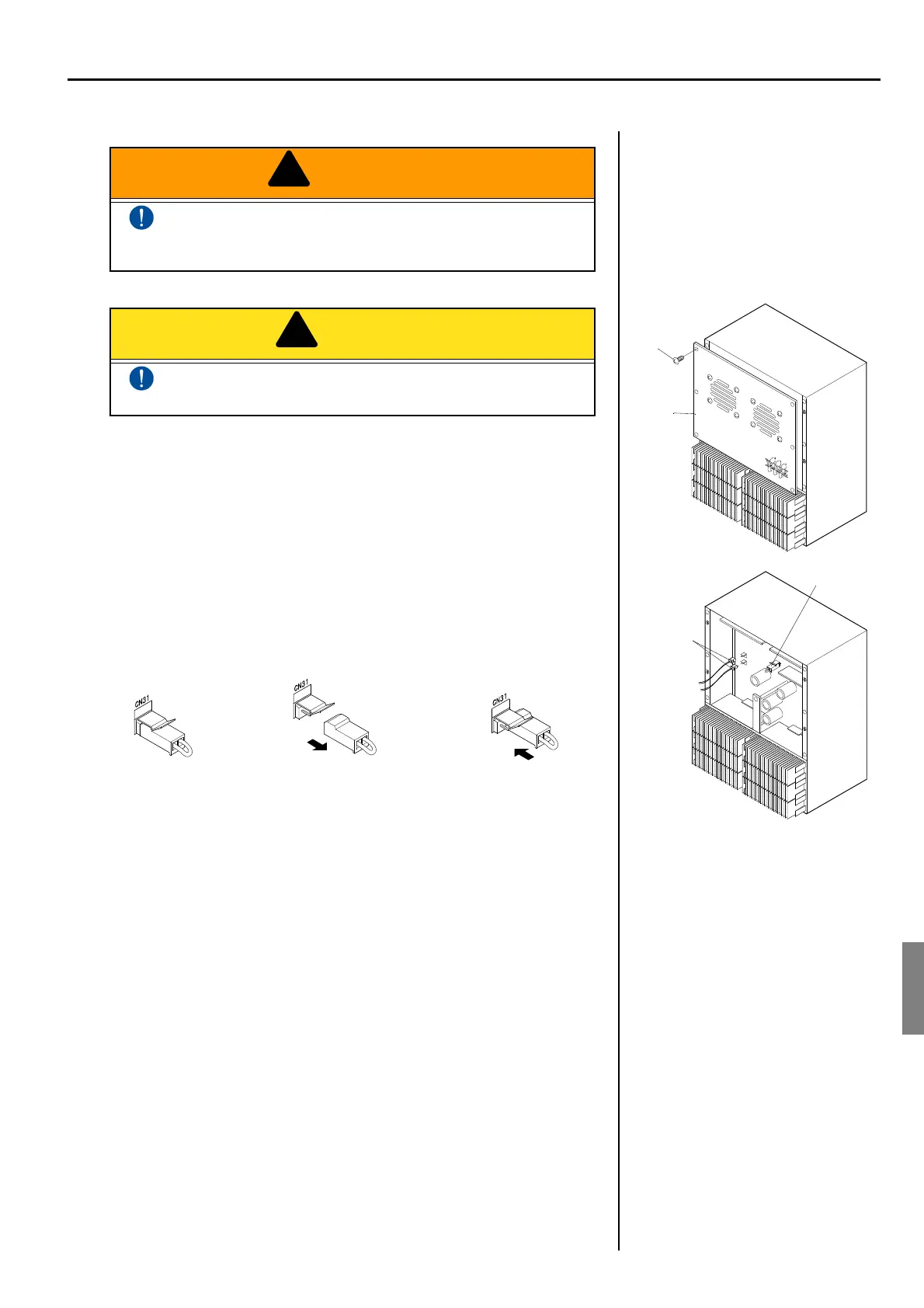

2. SWITCHING OF POWER SUPPLY SPECIFICATION
It is possible to change power supply specification by changing connecting method of the short
connector in the power supply/driver box. This, however, excludes standard/M-spec. machine
of TFHX/TFHX-C, and 7 to 20 head machine of TEHX-C.
1. Box cover
Remove the attaching screws (1) (6 spots), and take out the front cover (2) of the power
supply/driver box.
Remove the connector (3) of the fan motor located at the box cover.
2. Short connector
Slide the position of the short connector CN31A (4) for re-insertion.
WARNING
To prevent electric shock, be sure to turn off the primary power
supply. Turn off the power switch before turning off the primary
power supply.
CAUTION
Regarding standard/M-spec. machine of TFHX/TFHX-C, and 7 to 20
head machine of TEHX-C, fix the power supply to 200 V system.
(GC02)
!
!
1
2
4
3
100 V system
200 V system
