CHAPTER 7 MANUAL OPERATION
76
11. FRAME BACK/FORWARD
<How to call the screen>

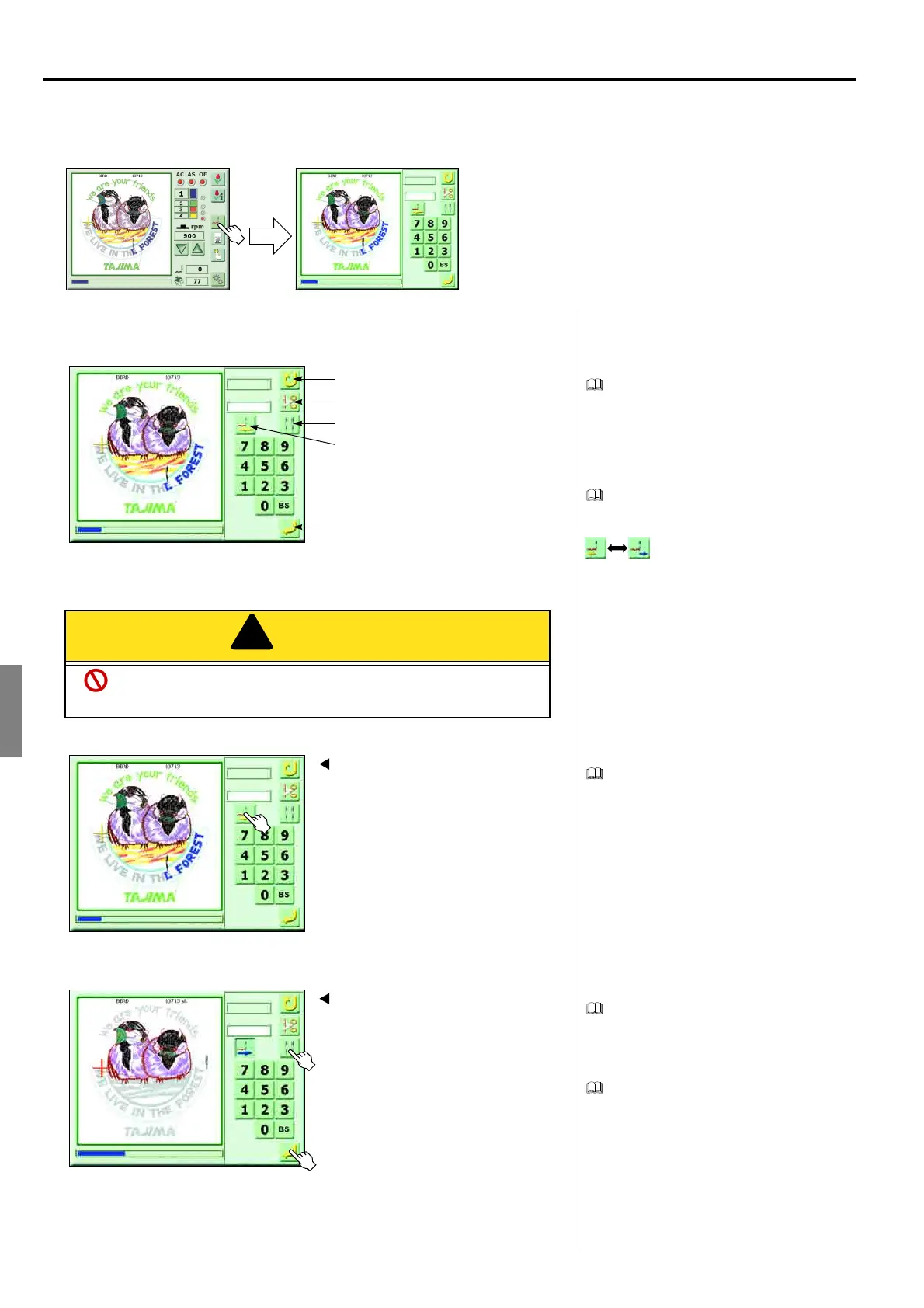

Explanation on the screen (screen 1200)
Frame back breaks embroidery and moves
only the frame to the direction where
stitches return.
Frame forward breaks the embroidery and
causes only the frame to move to the direc-
tion where stitch(es) advance.
+/- of amount of moving stitches changes to
frame back “-”, or frame forward “+”.
Every pressing switches frame back/for-
ward.
1. Select frame back/forward
Perform thread trimming if necessary.
2. Input and execution of amount of moving stitches
Every pressing of stop code searching will
search the next stop code.
It is also possible to input the number of
stitches by numerical keys.
Execution will perform frame back/forward
by the specified stitches.
CAUTION
When performing this operation, do not put your hands, etc. on the
machine table. Moving embroidery frame will cause you injured.
(FD11)
77
4028
+
The current stitch
Amount of moving stitches
77
4028
+
Thread trimming
Execute
Previous state
Search stop code (color change)
Switching of frame back/forward
The current stitch
Amount of moving stitches
!
Screen 1200
77
0+
1
The current stitch
Amount of moving stitches
Screen 1200
77
6825+
3
2
The current stitch
Amount of moving stitches
