CHAPTER 7 MANUAL OPERATION
69

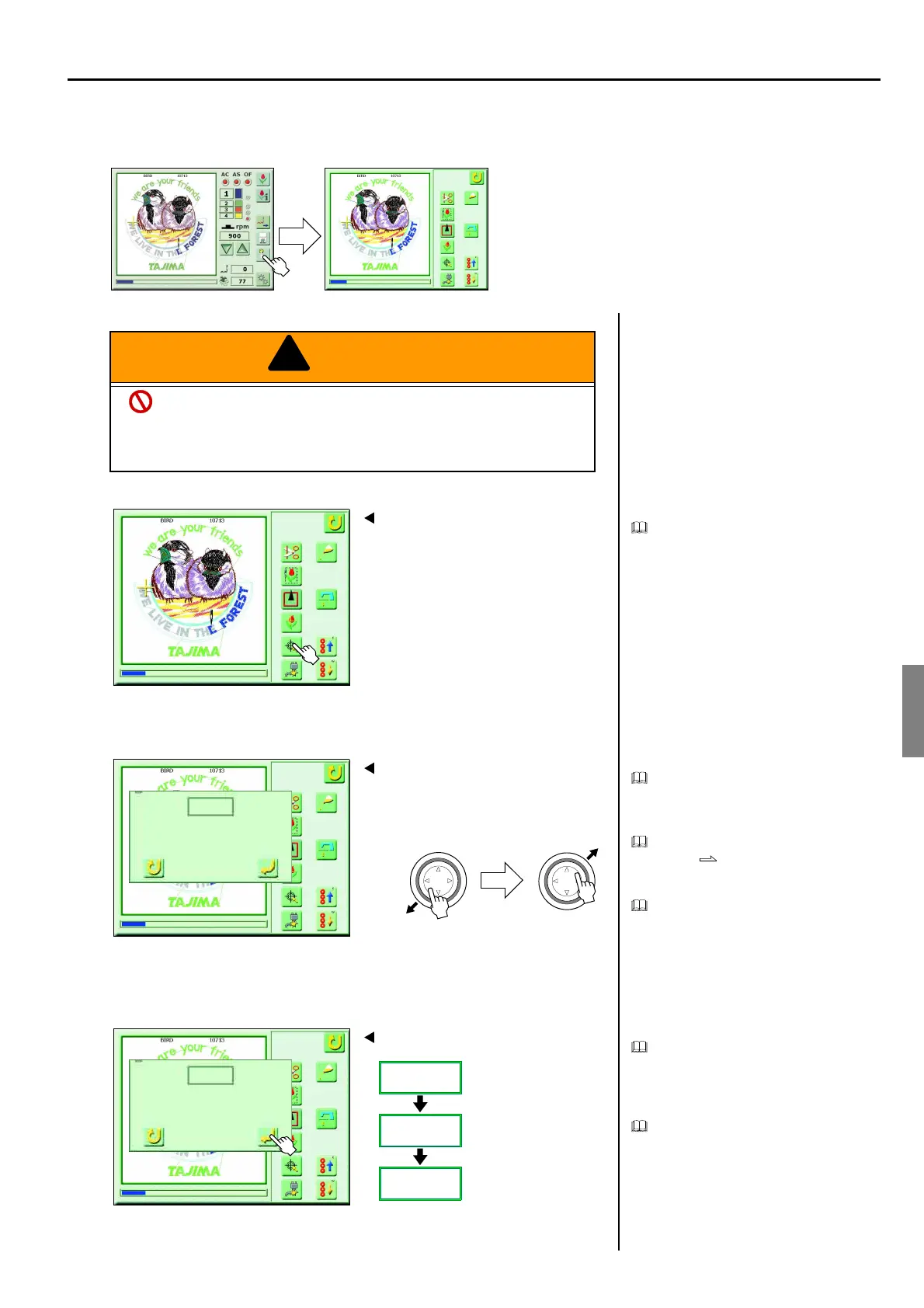

4. FRAME ORIGIN MEMORY (TFHX-II, TFHX-IIC)
<How to call the screen>
1. Select frame origin memory
Move the frame by frame travel key to make
the machine memorize the origin of the
embroidery frame.
Perform this operation after the software was
installed or when the frame was moved dur-
ing turning off the power.
2. Search the origin
Move the frame by frame travel key to the
left of the front. When the frame comes not
to move, move the frame to the rear right
direction.
Set the frame travel keys to 8-direction
travel. p.92
It is not possible to use jog remote-control-
ler.
3. Memorize the origin
When the position of the origin is searched,
[-] will switch to [o]. When the origins of
both axes are searched, make the machine
memorize the positions.
When the machine memorizes the origin, the
frame will return to the original position.
WARNING
When performing this operation, do not put your hands under the
needle or on the machine table. If your hands are under the needle
or on the machine table, you may be injured by the needle or the
moving frame.
(GC07)
Xa:43.2
Ya:-276.1
!
Screen 1400
1
Xa:43.2
Ya:-276.1
Screen 1400
X[-] Y[-]
Frame travel key
Xa:271.4
Ya:116.2
Screen 1400
X[o] Y[o]
X[-] Y[-]
X[o] Y[-]
X[o] Y[o]
No detection
Detection of X-axis only
Detection of the origins of
2
Xa:0.0
Ya:0.0
both axes
To Next Page
