Tascam DP-01 User Manual

Starting out with your DP-01
TASCAM DP-01 Owner’s Manual 13
Connecting your DP-01 to other equipment
Connecting your DP-01 to other equipment
Figure 1.4 shows a
DP-01FX model.
The appearance of the DP-01 dif-
fers slightly, but the principles are
the same.
Before you start recording with the DP-01, you will need to make a few connec-
tions to other equipment. Figure 1.4 shows how you can connect your DP-01 to
your existing audio setup.

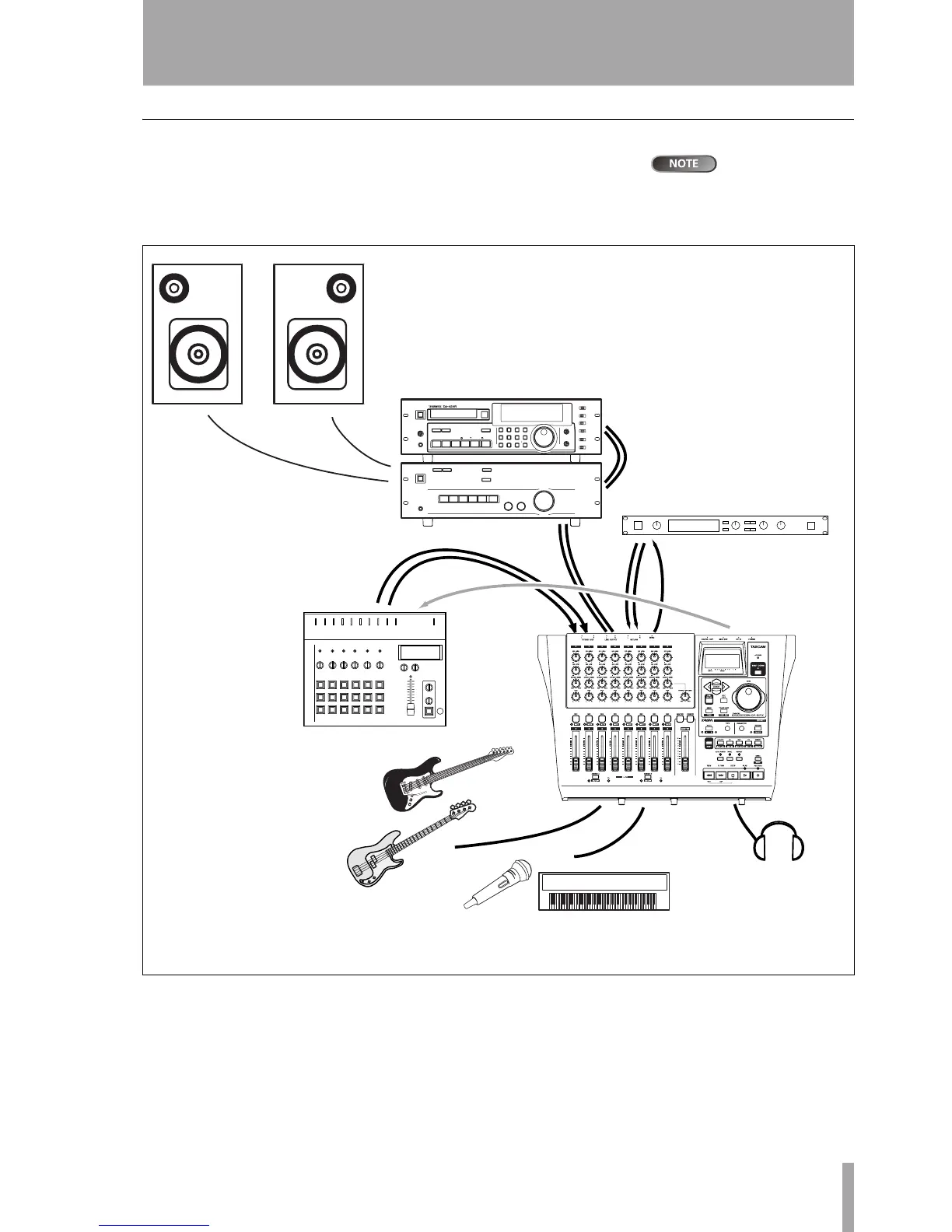

Figure 1.4: Connecting your DP-01 to other equipment
SEND
MIDI OUT
RETURN
(L, R)
LINE OUTPUT
(L, R)
REC OUT/
PLAY IN
STEREO MIX
(L, R)
External effects unit
Stereo
amplifier
2-track
recorder
Instruments and
microphones to
INPUT A and B
Guitars and basses
to INPUT A
PHONES
Drum machine
MIDI IN

Tascam DP-01 Specifications

General

Tracks	8
Simultaneous Recording Tracks	2
Phantom Power	Yes
Display	LCD
Sampling Frequency	44.1 kHz
A/D Resolution	24-bit
D/A Resolution	24-bit
Power Supply	AC adapter
Inputs	2 x XLR/TRS combo
Outputs	Stereo RCA
EQ	2-band per channel
Effects	Reverb
