■ Replacing light bulbs
If you want to remove a bulb, push it into the
reector and then turn to the left.
If you want to install a new bulb, push it into
the reector and then turn to the right.
(1) Head light and work light
① Remove the screw securing the rim and
housing, and remove the rim, lens, and
gasket.
② Remove the bulb from the reflector and
install a new bulb.
1. Use caution not to get burnt because the surface of a hot soon after it is turned off.
 2. Usecautionnottocontaminatethebulbandreectorsurfaces.
③ With the gasket, install the lens and reector.
(2) Rear and front combination lights
① Remove the screws securing the lens and
body, and separate the lens from the body.
② Remove the the burned-out bulb you want to
replace and install a new bulb.
③ Reassemble the lens and body with the
screws.
リフレクタ
スクリュ
40W-48V
ガスケット
レンズ
リム

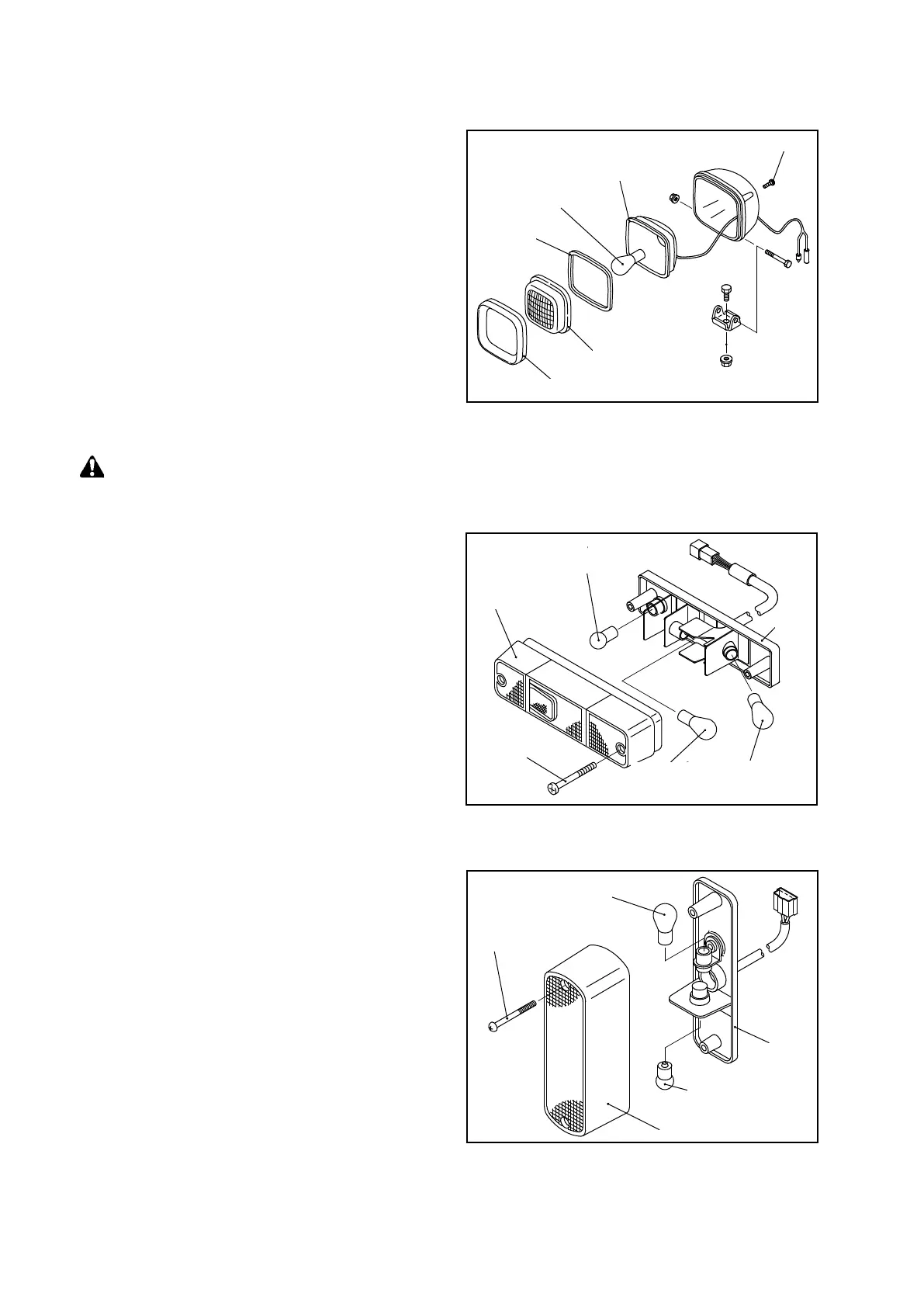

Fig. 9.9 Head Light (Work Light)
GASKET
REFLECTOR
SCREW
LENS
RIM
バックアップランプ
10W-48V
レンズ
スクリュ
ストップ／
テールランプ
25W/10W-48V
ターンシグナル
ランプ
25W-48V
ボディ
Fig. 9.10 Rear Combination Light
BACK-UP LIGHT
10W-48V
LENS
SCREW
BODY
STOP/
TAIL LIGHT
25W/10W-48V
TURN SIGNAL
LIGHT
25W-48V
スクリュ
ターンシグナルランプ
25W-48V
クリアランスランプ
10W-48V
ボディ
レンズ
Fig. 9.11 Front Combination Light
TURN SIGNAL LIGHT
25W-48V
SCREW
BODY
SIDE MARKER LIGHT
10W-48V
LENS
