2. ELECTRICAL PARTS AND PROCEDURES FOR CHECKING
■Removing the inverter unit (1-ton class trucks excluding those with an Orbitrol steering
system)
■Removing the inverter unit (2- and 3-ton class trucks excluding those with an Orbitrol
steering system)

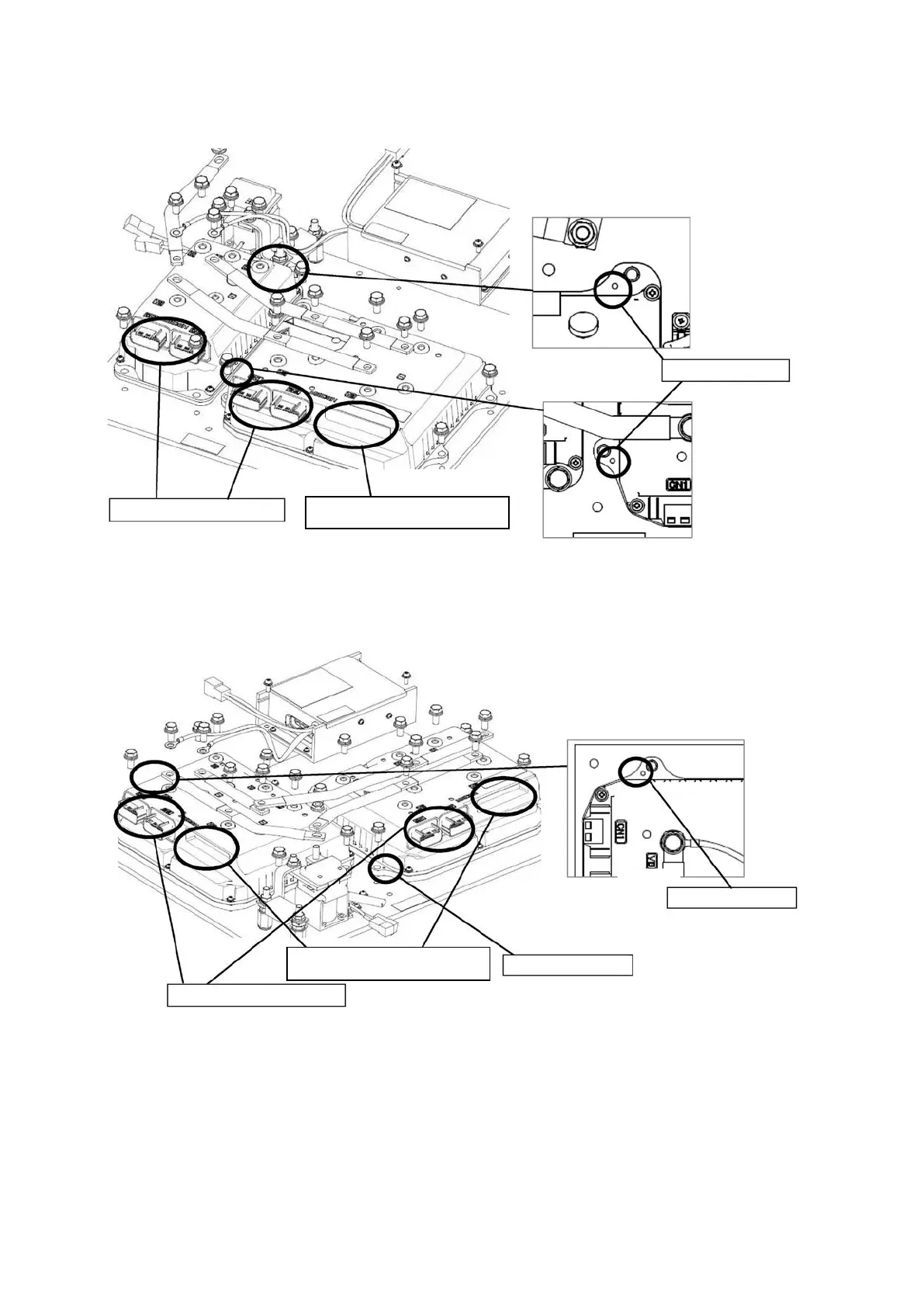

Pass screws (M4 x 20 mm or longer) through
tapped through-holes in the aluminum inverter
base and remove the inverter unit from its
aluminum n.
Thru holes
Top view
Do not hold the inverter unit by the
cover’s grooves.
Do not hold the connectors.
Top view
Pass screws (M4 x 20 mm or longer) through
tapped through-holes in the aluminum inverter
base and remove the inverter unit from its
aluminum n.
Top view
Thru holes
Do not hold the inverter unit by the
cover’s grooves.
Do not hold the connectors.
Thru holes
