3. Checking hydraulic oil level
Check the hydraulic oil level in the hydraulic oil
tank using the oil level dipstick.
Remove the dipstick of the tank cap, clean the rod
with a clean cloth and reinsert it. Remove the dipstick
again and check the oil level. If the level is low, add
hydraulic oil.
[How to read oil level]
“H” mark: Highest position of the standard truck
“L” mark: Lowest position of the standard truck
“S” mark: For trucks with a lift height of 6 m or more
or for special trucks, the oil level should be
within 10 mm above or below this mark.
NOTE
Too high oil level might cause oil leakage.
•
The oil level check should be performed with the
•
mast vertical, the forks on the ground or floor
surface, and the truck parked on a level surface.

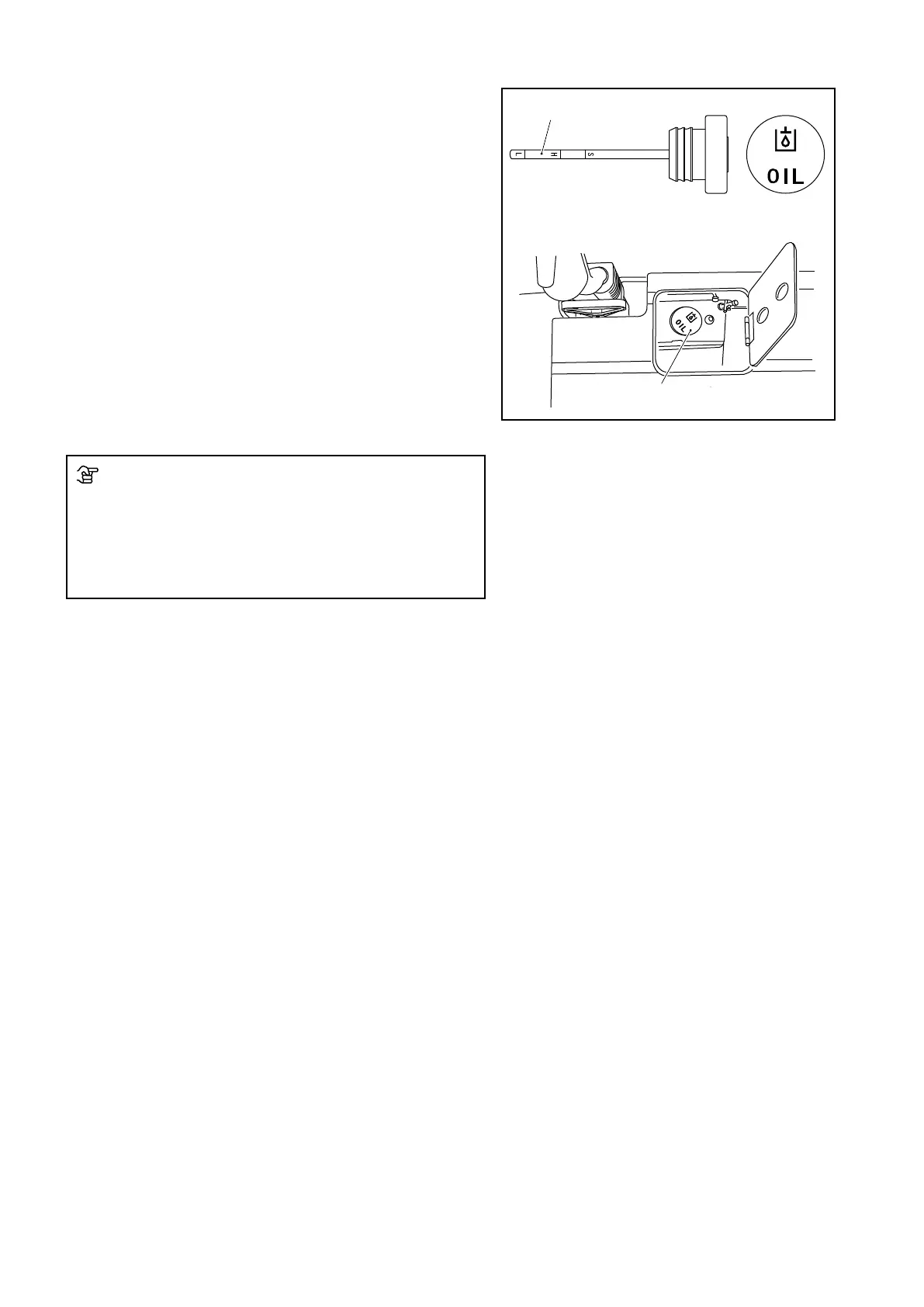

Fig. 05.3
OIL DIPSTICK
HYDRAULIC OIL TANK CAP
