TCM FB30-8 - Page 31

- 5 -
CMコンタクタ

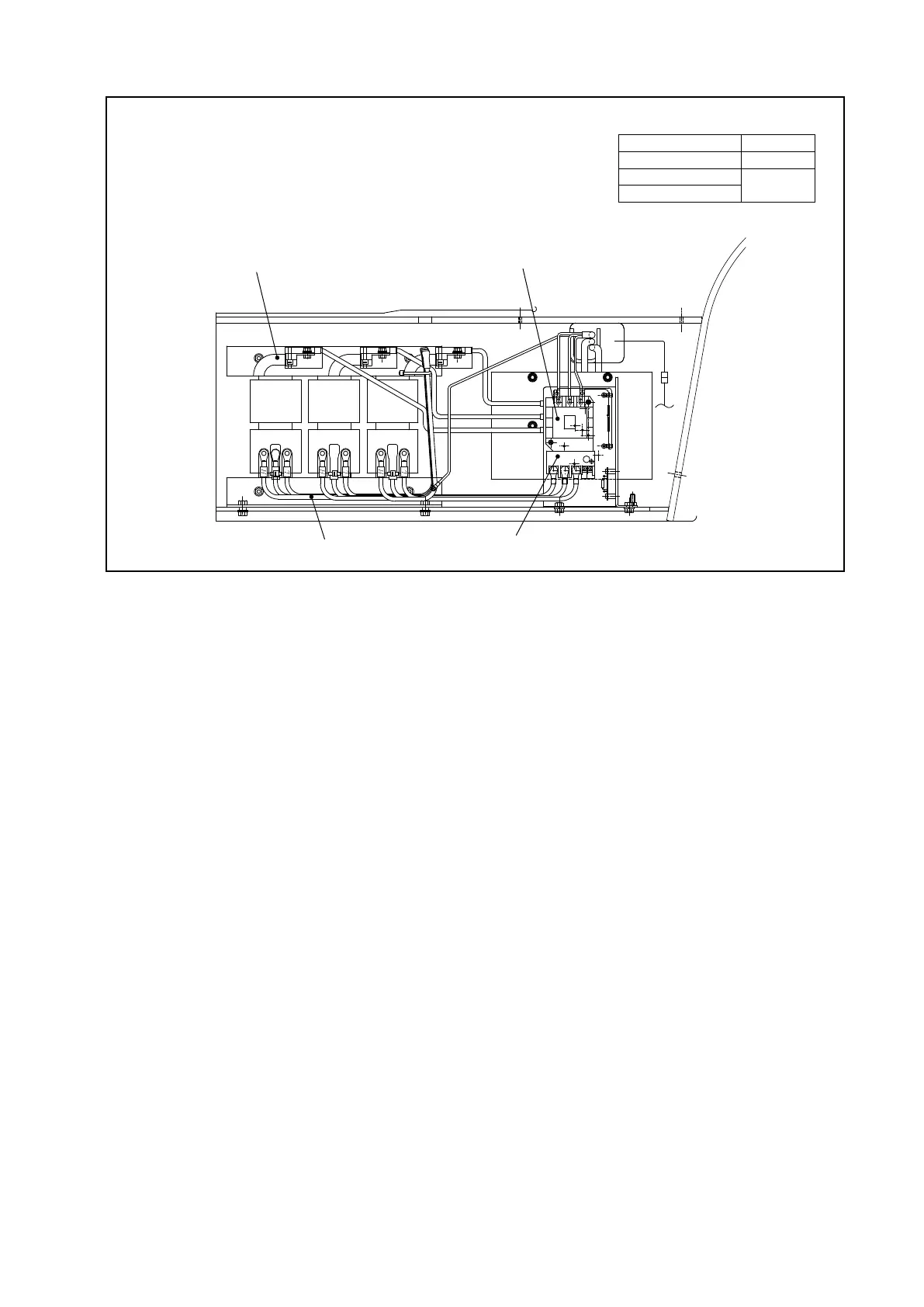

Fig. 1.5 Battery Charger (3- to 3.5-ton Trucks)
Thermal relay current settings
Transformer model Setting (A)
M105B 40
M105C
26
M105D
SECONDARY WIRE
CM CONTACTOR
PRIMARY WIRE
THERMAL RELAY
1. BATTERY AND CHARGER (OPTION)
