TCM FB30-8 - Page 83

- 57 -

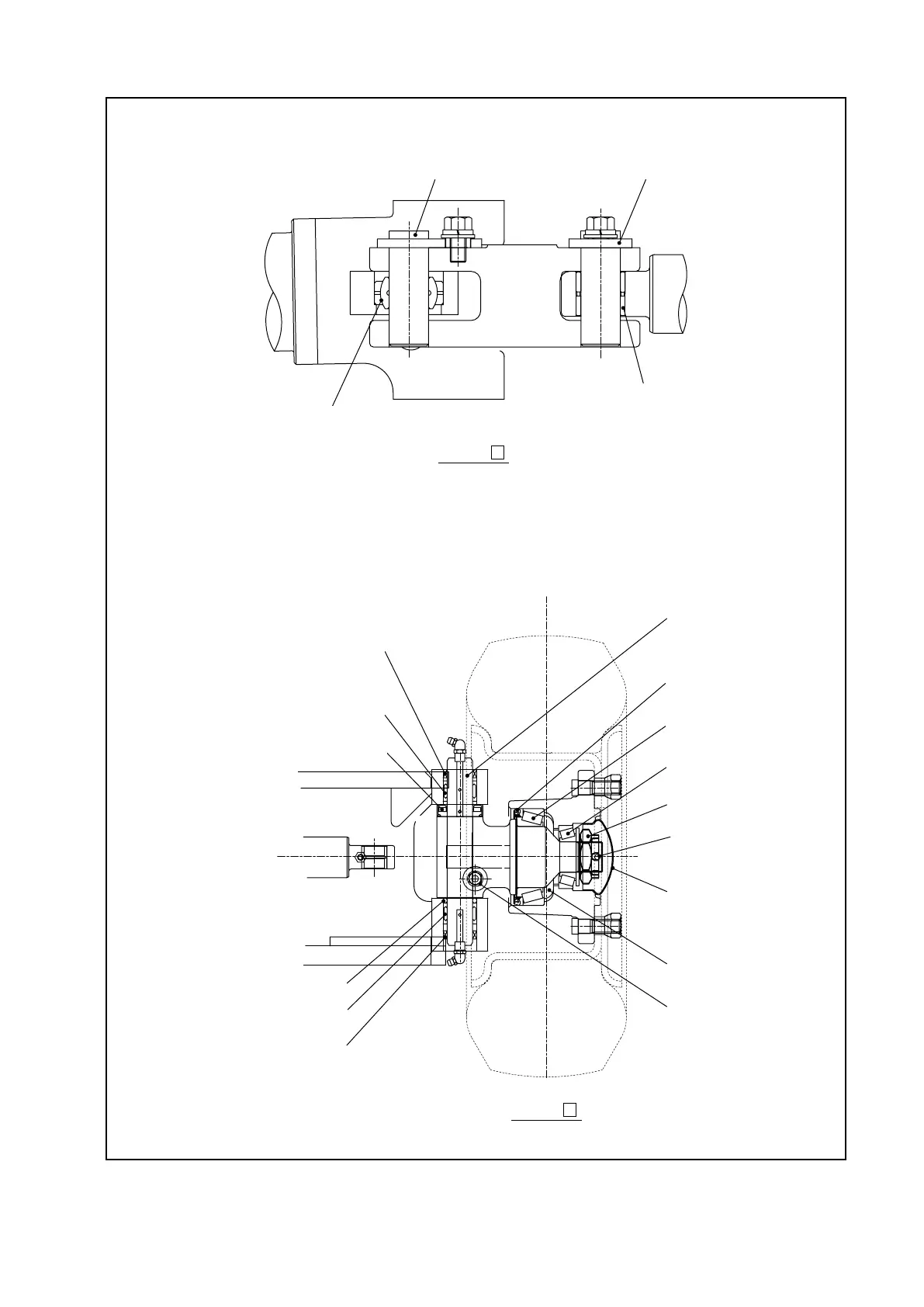

Fig. 6A.2 Steering Axle (for 1.0- to 1.8-ton Trucks) 2/2
Detail of
D
PIN PIN
SPHERICAL
BUSHING
BUSHING
OIL SEAL
NEEDLE BEARING
THRUST BEARING
“O”-RING
NEEDLE BEARING
OIL SEAL
KING PIN
OIL SEAL
TAPERED ROLLER
BEARING
TAPERED ROLLER
BEARING
ADJUSTMENT NUT
COTTER PIN
CAP
Fill 50% of the
space with grease
LOCK PIN
Detail of
C
6A. STEERING SYSTEM (ORBITROL type)
