- 58 -
A
B
C
D

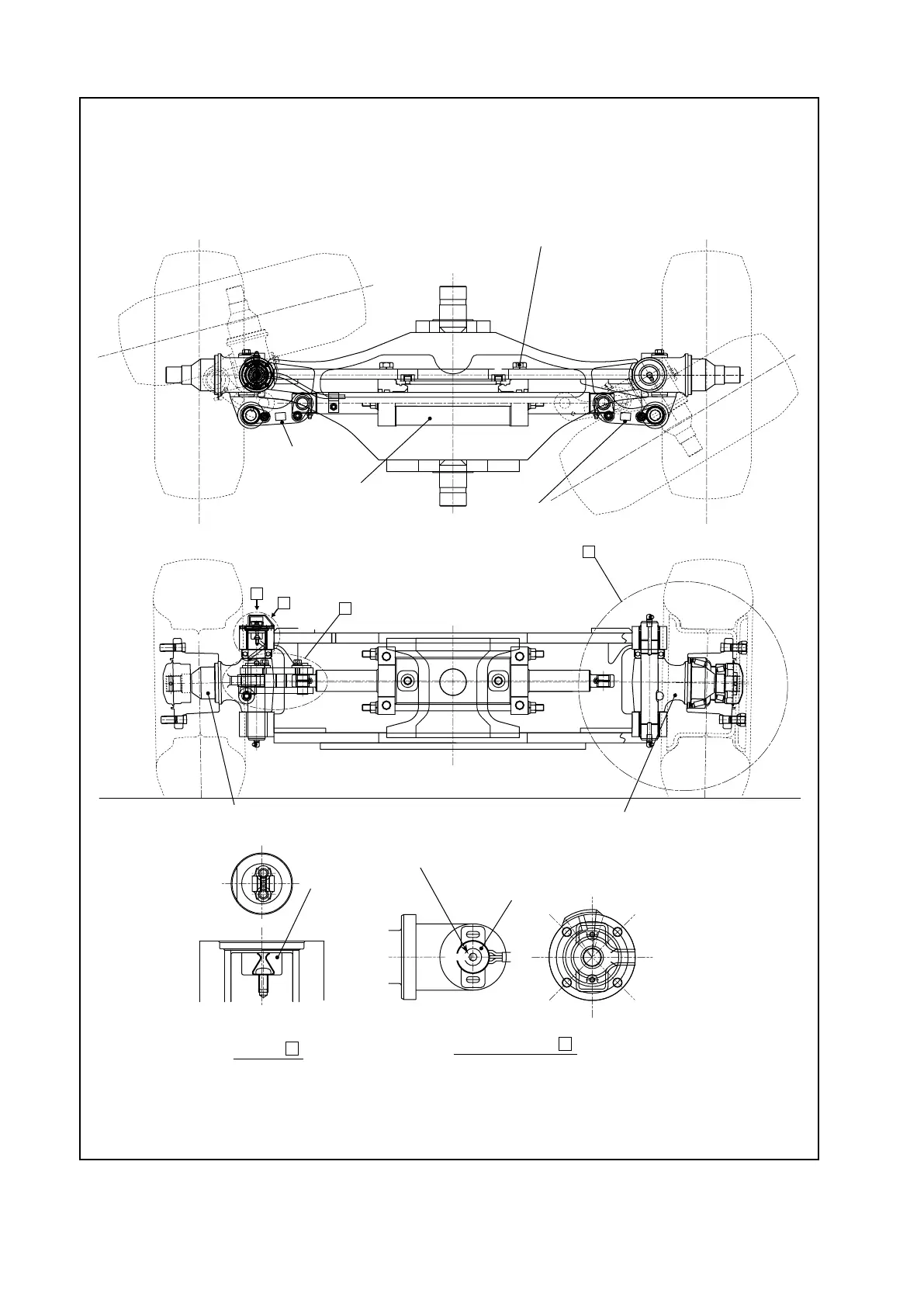

Fig. 6A.3 Steering Axle (for 2.0- to 3.5-ton Trucks) 1/2
JOINT (LEFT)
JOINT
(RIGHT)
Tightening torque:
68 to 100 N-m
{7 to 10.2 kgf-m}
[50.6 to 73.8 lbf-ft]
Apply THREEBOND #1324
KNUCKLE
(LEFT)
KNUCKLE
(RIGHT)
View looking from
B
Detail of
A
POWER
CYLINDER
KING PIN
POTENTIOMETER
See Figure 6A.4.
Point notched surface
toward knuckle’s shaft
See Figure 6A.4.
6A. STEERING SYSTEM (ORBITROL type)
