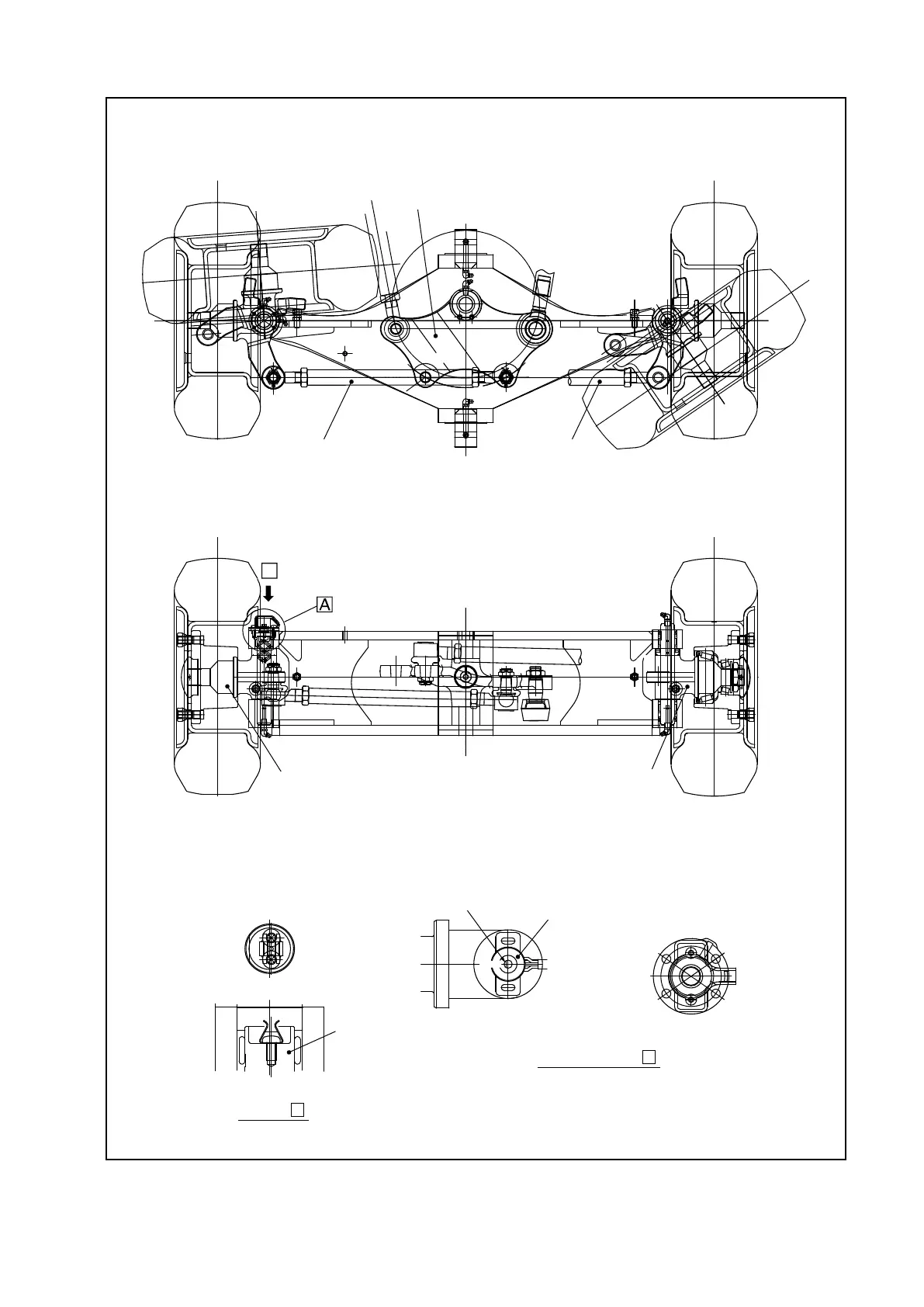

Fig. 6B.6 Rear Axle (1- to 1.8-ton Trucks)
KNUCKLE (RIGHT)
TIE ROD (RIGHT)
TIE ROD (LEFT)
KNUCKLE (LEFT)
CENTER ARM
KING PIN
POTENTIOMETER
View looking from
B
Detail of
A
Point notched surface
toward knuckle’s shaft
6B. STEERING SYSTEM (EPS type)
