6.3.3 LIST Mode Example
VOLT: MODE LIST
Select LIST Mode Sequence
LIST:VOLT 2,4,2,8,5,4
Set voltage values ”2,4,2,8,5,4” Volts
LIST:DWEL 0.5,0.5,1,1,1,1
Set dwell values ”0.5,0.5,1,1,1,1” Seconds
STEP AUTO
Set AUTO step execution mode ”AUTO”
COUN 1
Set list execution iterations ”1”
TRIG:SOUR BUS Select BUS trigger source via communication
interface or front panel
INIT:CONT OFF
Trigger system is enabled for a single trigger action
INIT
Trigger initialize
*TRG
Trigger command

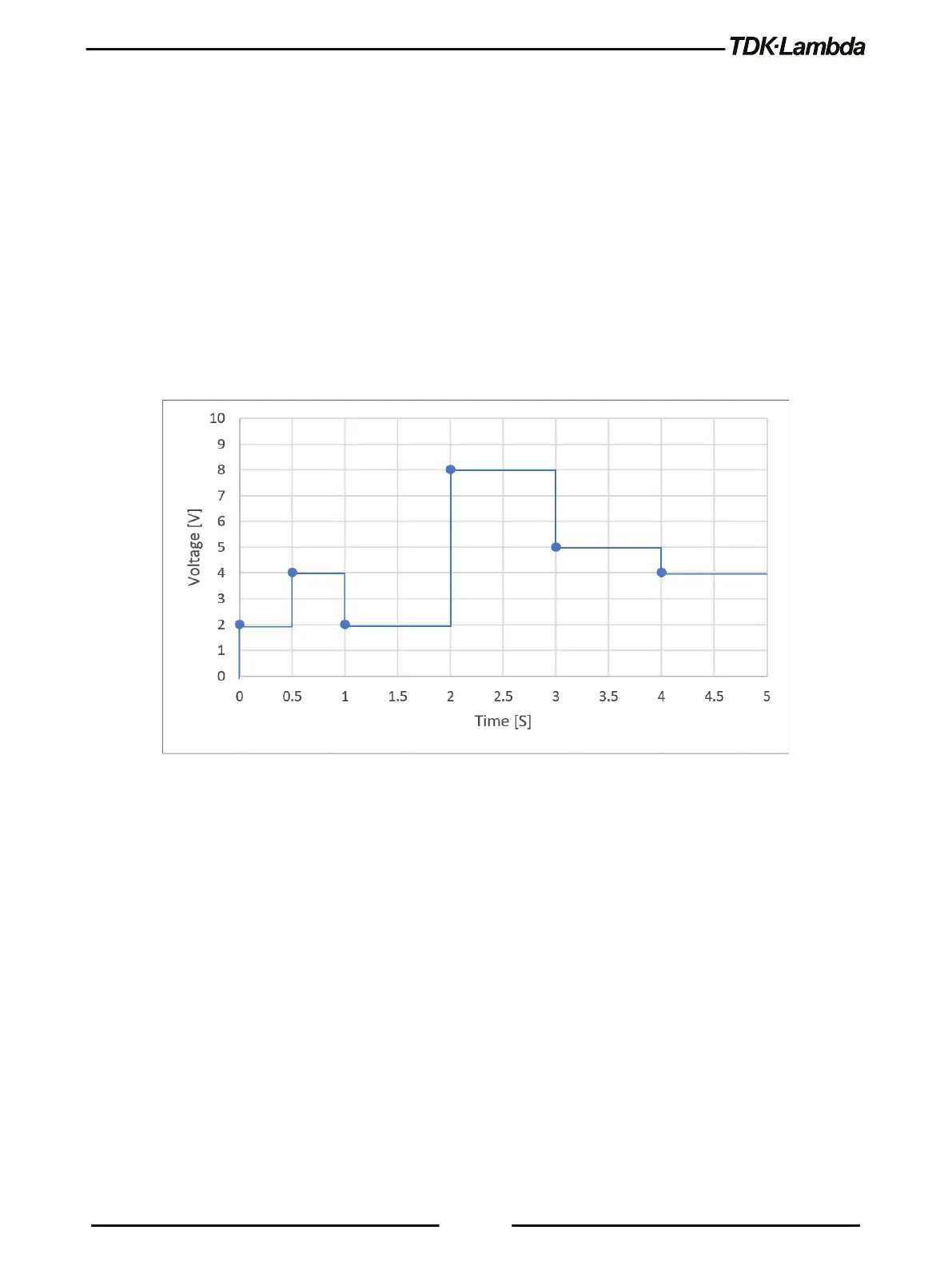

Figure 6–5: LIST Mode Example
