TDK-Lambda G30-170 - Front Panel Display and Indicators

13
No.
Control/Indicator
Description
16 PREV Button / Indicator Press the PREV button to display the Output Voltage and
Current Limit settings.
The display shows the settings for 5 seconds.
If buttons are not pressed for 5 seconds, the display returns
back to show actual output voltage and current.
If Voltage or Current values are changed, and there is no
keypress for 15 seconds, the display returns back to show
actual output Voltage and Current.
Green LED lights when the PREV mode is active.
17 OUT Button / Indicator Output ON/OFF control.
Press OUTPUT to set the output ON or OFF.
Green LED lights when the DC Output is enabled.
Table 2-1: Front Panel Controls
NOTE
* If a menu is active, and there is no key press within 15 seconds, power supply returns to the
main display (OFF or actual Voltage and Current display).
2.3 Front Panel Display and Indicators
Refer to Figure 2–2 and Table 2-2 for description of the Front Panel display and indicators.

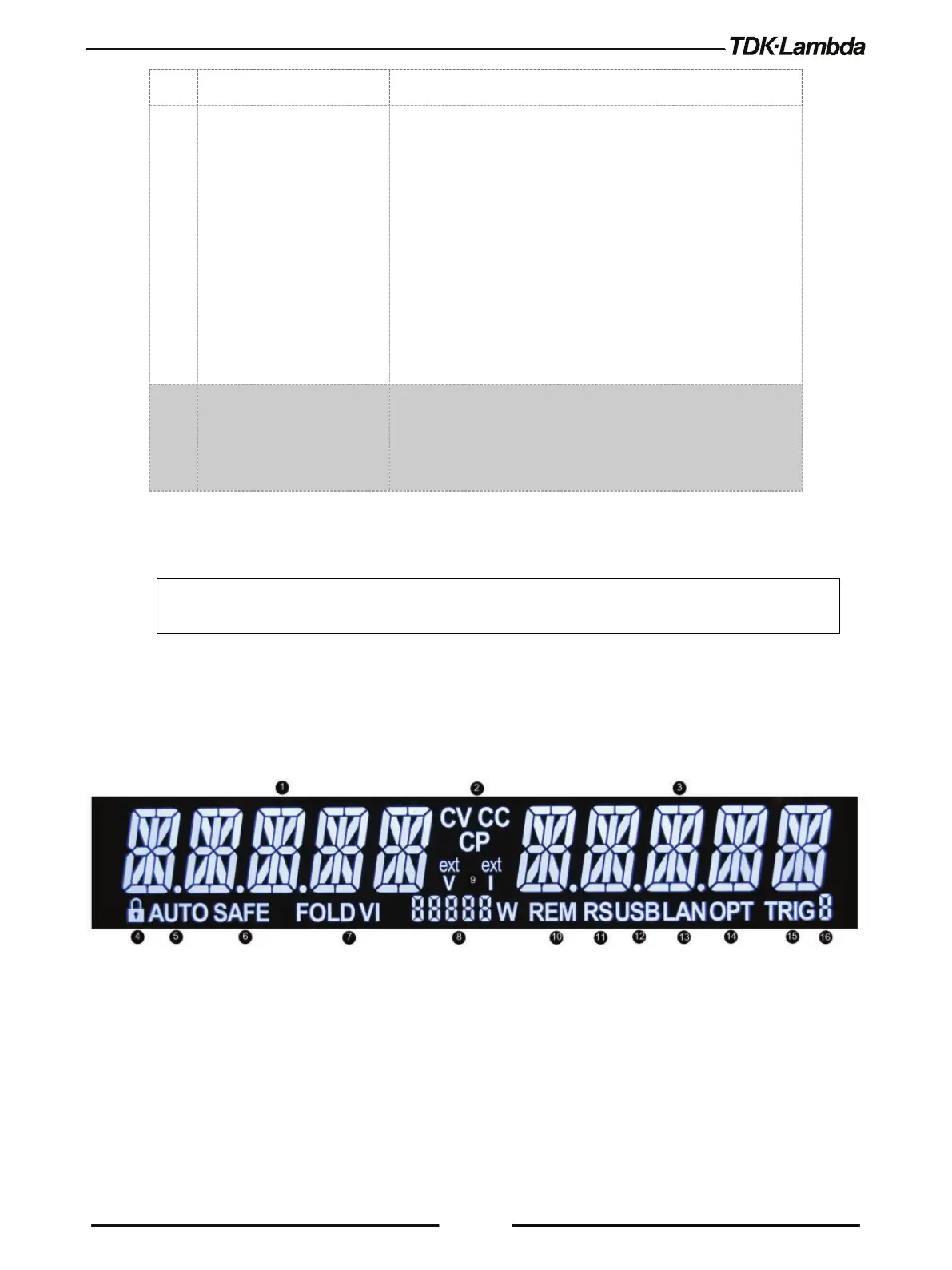

Figure 2–2: Front Panel Display and Indicators
