TECDrive20-EU Series Inverter Fault tracking
-104-
Ensure whether there is
stuff or foreign objection
in the cooling fan, air
vent.
6.1.2 Cooling fan
The inverter's cooling fan has a minimum life span of 25,000 operating hours. The actual life
span depends on the inverter usage and ambient temperature.
The operating hours can be found through P07.14 (accumulative hours of the inverter).
Fan failure can be predicted by the increasing noise from the fan bearings. If the inverter is
operated in a critical part of a process, fan replacement is recommended once these
symptoms appear. Replacement fans are available from TECDrive.
Read and follow the instructions in Chapter 1 "Safety precautions".
Ignoring the instructions would cause physical injury or death, or damage
to the equipment.
1. Stop the inverter and disconnect it from the AC power source and wait for at least the time
designated on the inverter.
2. Lever the fan holder off the drive frame with a screwdriver and lift the hinged fan holder
slightly upward from its front edge.
3. Disconnect the fan cable. Remove the installation bracket.
4. Install the bracket to the reversed direction. Pay attention the air direction of the inverter
and the fan as the figure below:
Rotation
direction
Air direction
Air direction

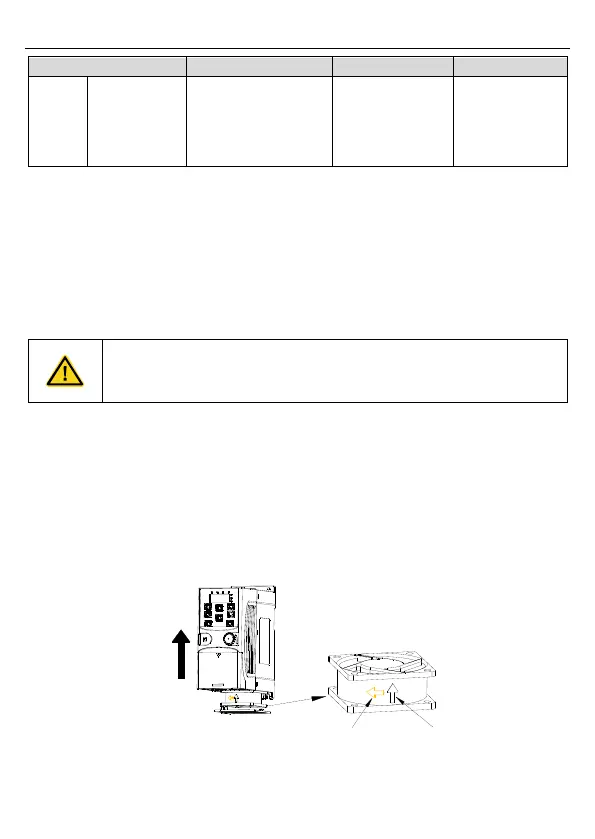

Figure 6-1 Fan installation of the inverters 1PH, 230V, ≤2.2kW
