TECDrive20-EU Series Inverter Optional peripheral accessories
-156-
Note:
 The rated input voltage drop of input reactors is 2%±15% while the rated output voltage
drop of output reactors is 1%±15%.
 The preceding table describes external accessories. You need to specify the ones you
choose when purchasing accessories.
C.6 Filter

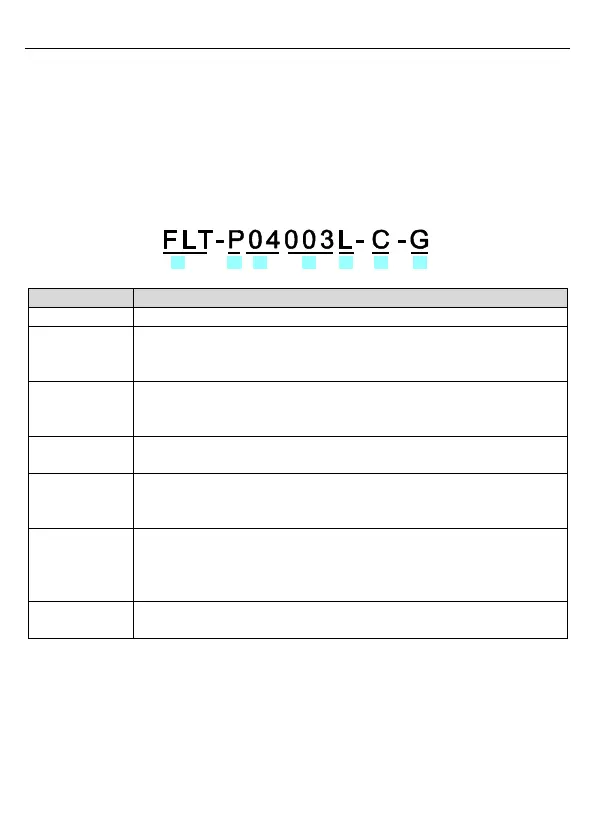

C.6.1 C3 Filter model instruction
BA C D E F
G
Field identifier
Field description
A
FLT: Name of the inverter filter series
B
Filter type
P: Power input filter
L: Output filter
C
Voltage class
S2: AC 1PH 200V–240V
04: AC 3PH 380V–480V
D
3-digit development serial number. For example, 003 stands for the serial
number of C3 filters in development
E
Filter performance
L: General
H: High-performance
F
Filter application environment
A: Environment Category I (IEC61800-3) category C1 (EN 61800-3)
B: Environment Category I (IEC61800-3) category C2 (EN 61800-3)
C: Environment Category II (IEC61800-3) category C3 (EN 61800-3)
G
Lot No.
G: Special for external C3 filter
C.6.2 C3 filter
TDI20-EU series 1PH 220V/3PH 380V 2.2kW and below, 3PH 220V 0.75kW and below
models can satisfy the requirements of IEC61800-3 C3 as shown in the table below; 3PH
380V 4kW and above, 3PH 220V 1.5kW and above models can be set to satisfy the
requirements of IEC61800-3 C3 or not by jumper J10.
Note: Disconnect J10 when either of below situations occurs:
1. EMC filter is suitable for the neutral-grounding grid system. If it is used in IT grid system
