TECDrive20-EU Series Inverter Product overview
-9-
Function
Specification
Installation mode
Wall and rail installation of the inverters (single
phase 230V/three phase 400V, ≤2.2KW and three
phase 230V, ≤0.75KW)
Wall and flange installation of the inverters (three
phase 400V, ≥4KW and three phase 230V, ≥1.5KW)
Braking unit
Standard for the inverters≤37kW and optional for
the inverters within 45–110kW
EMI filter
3PH 400V 4kW and above/3PH 230V 1.5kW and
above can comply with IEC 61800-3 class C3,
others can meet requirements of IEC 61800-3 class
C3 by installing external filter (optional). This series
of products can comply with IEC 61800-3 class C2
by installing external filter (optional).
Ambient temperature
-10 to 50°C , derate 1% for every increased 1°C
when the temperature is higher than 40°C
Altitude
Below 1000m. If the elevation is above 1000m,
derate 1% for every additional 100m.
Ingress protection (IP)
rating
IP20
Note: The inverter with plastic casing should be
installed in metal distribution cabinet which
conforms to IP20 and the top of which conforms to
IP3X.
Pollution level
Level 2
Safety regulation
Comply with CE requirements
Cooling mode
Forced air cooling

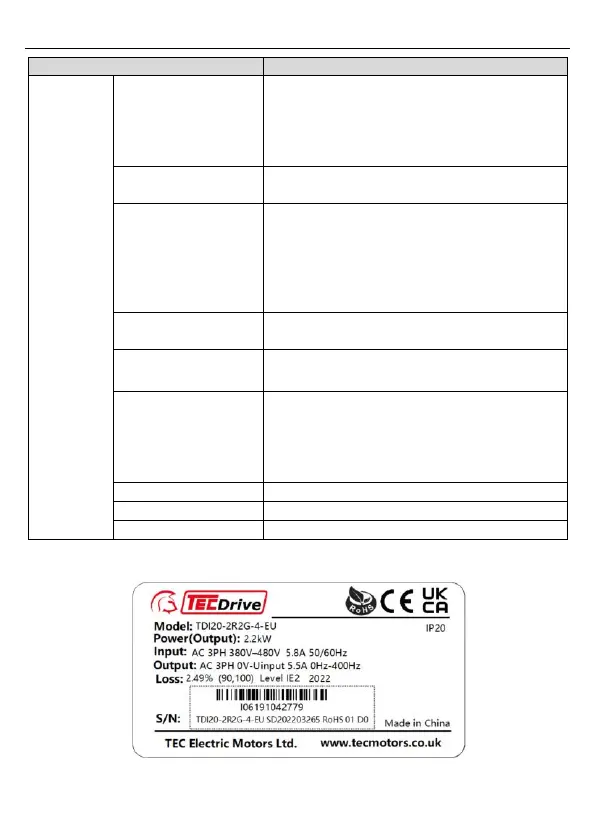

2.5 Product nameplate
Figure 2-1 Product nameplate
