TEC TECDrive20-EU Series - P07 Group HMI

TECDrive20-EU Series Inverter Function parameters
-67-
Function
code
Name
Description
Default
Modify

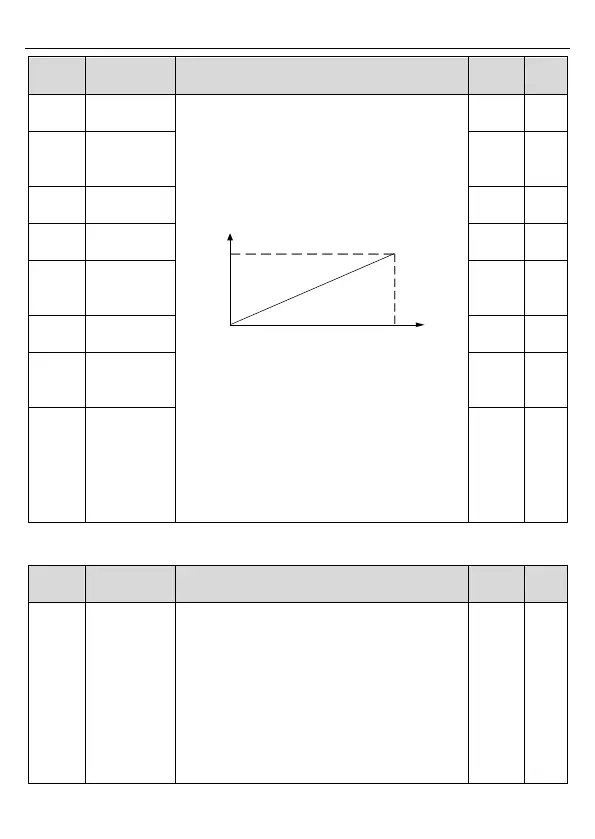

P06.19
Upper limit of
AO1 output
output.
When the analog output is current output, 1mA
equals to 0.5V.
In different cases, the corresponding analog
output of 100% of the output value is different.
Refer to each application for detailed
information.
10V (20mA)
0.0% 100.0%
AO
Setting range of P06.17: -100.0%– P06.19
Setting range of P06.18: 0.00V–10.00V
Setting range of P06.19: P06.17–100.0%
Setting range of P06.20: 0.00V–10.00V
Setting range of P06.21: 0.000s–10.000s
Setting range of P06.22:- 100.0%– P06.24
Setting range of P06.23: 0.00V–10.00V
Setting range of P06.24: P06.22–100.0%
Setting range of P06.25: 0.00V–10.00V
Setting range of P06.26: 0.000s–10.000s
100.0%
○
P06.20
Corresponding
AO1 output of
the upper limit
10.00V
○
P06.21
AO1 output
filter time
0.000s
○
P06.22
Lower limit of
AO2 output
0.0%
○
P06.23
Corresponding
AO2 output to
the lower limit
0.00V
○
P06.24
Upper limit of
AO2 output
100.0%
○
P06.25
Corresponding
AO2 output to
the upper limit
10.00V
○
P06.26
AO2 output
filter time
0.000s
○
P07 group HMI
Function
code
Name
Description
Default
Modify
P07.00
User password
0–65535
The password protection will be valid when
setting any non-zero number.
00000: Clear the previous user's password, and
make the password protection invalid.
After the user's password becomes valid, if the
password is incorrect, users cannot enter the
parameter menu. Only correct password can
make the user check or modify the parameters.
Please remember all users' passwords.
0
○
