2.8 Structure diagram
The following figure shows the structure of the inverter (3PH 400V, ≤2.2kW) (using the 0.75kW
inverter model as the example).
1
2
3
1
5
3
4
7
9
8
21
11
01
6

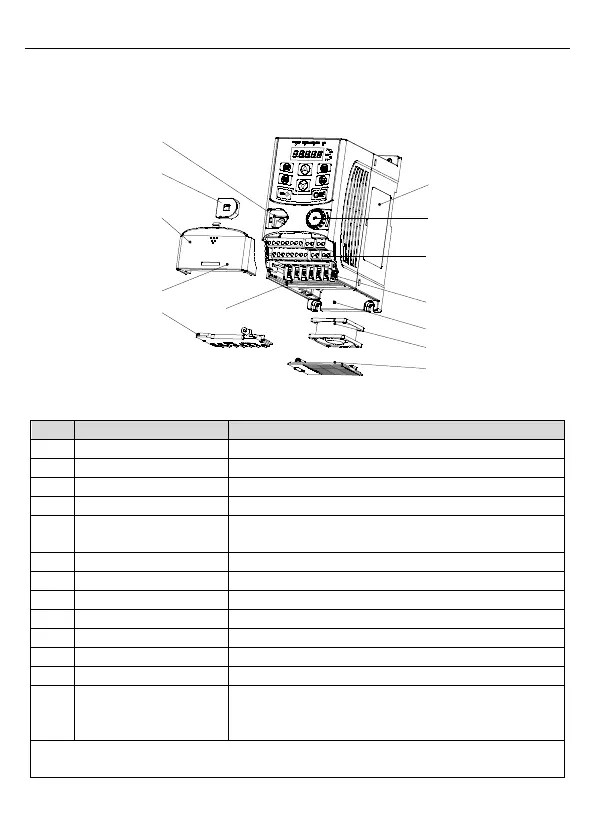

Figure 2-3 Product structure (3PH 400V, ≤2.2kW)
No.
Name
Description
1
External keypad port
Connect the external keypad
2
Port cover
Protect the external keypad port
3
Cover
Protect the internal parts and components
4
Hole for the sliding cover
Fix the sliding cover
5
Trunking board
Protect the inner components and fix the cables of the
main circuit
6
Name plate
See section 2.5 "Product nameplate" for details.
7
Potentiometer knob
Refer to Chapter 4 "Keypad operation".
8
Control terminals
See Chapter 3 "Installation guidelines" for details.
9
Main circuit terminals
See Chapter 3 "Installation guidelines" for details.
10
Screw hole
Fix the fan cover and fan.
11
Cooling fan
See Chapter 6 "Fault tracking" for details.
12
Fan cover
Protect the fan
13
Bar code
The same as the bar code on the name plate
Note: The bar code is on the middle shell which is under
the cover.
Note: In above figure, the screws at 4 and 10 are provided with packaging and specific
installation depends on the requirements of customers.
