TECDrive20-EU Series Inverter Optional peripheral accessories
-157-

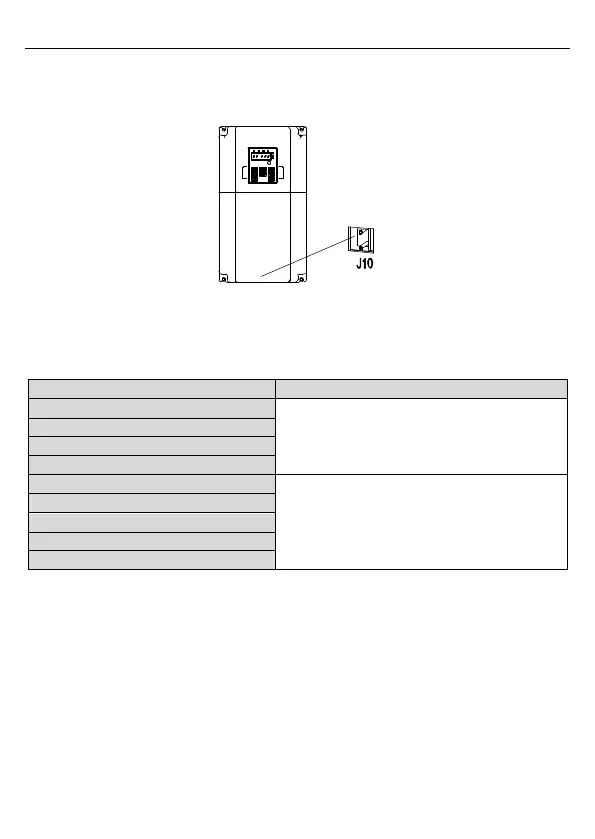

(neutral point is not grounded), disconnect J10.
2. During configuring residual current circuit-breaker, if tripping occurred during startup,
disconnect J10.
Interference filter on input side: As the inverter may interfere with peripheral devices during
working, this filter can be used to reduce the interference.
Noise filter on output side: This filter can be used to reduce the radio noise caused between
the inverter and motor as well as the leakage current of the lead wires.
Model
Input filter
TDI20-0R4G-S2-EU
FLT-PS2004L-C-G
TDI20-0R7G-S2-EU
TDI20-1R5G-S2-EU
TDI20-2R2G-S2-EU
TDI20-0R4G-2-EU
FLT-P04008L-C-G
TDI20-0R7G-2-EU
TDI20-0R7G-4-EU
TDI20-1R5G-4-EU
TDI20-2R2G-4-EU
Note:
 The input EMI meet the requirement of C3 after adding input filters.
 Above options are external, the customer should indicate when purchasing.
