3. Installation
2004-11 Operating Manual for the LS Series Scanner No. 30001798 Rev. No. 1.5 3-5

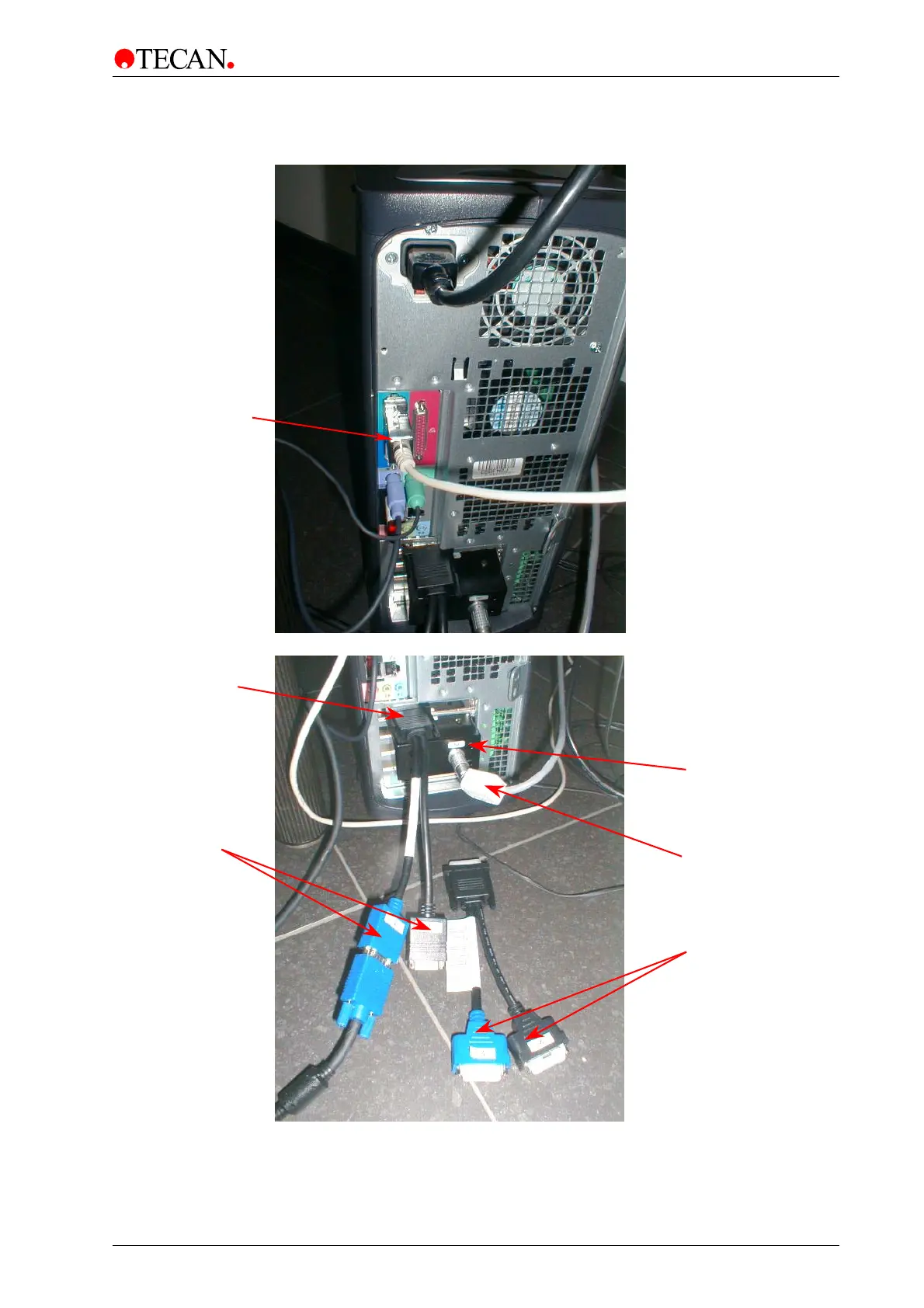

The pictures below show the connection of the interface cables
to the back of the computer:
RS232 to
instrument
Connection
for monitor
cables
Digital
monitor
cables
Analog
monitor
cables
Connector
box
Data cable to
instrument
