6. LSServer, Scanner Shell and Download
2004-11 Operating Manual for the LS Series Scanner No. 30001798 Rev. No. 1.5 6-11
6.3.4 Measurement
Start
In the Measurement Control dialog box, Click Start…to start a measurement

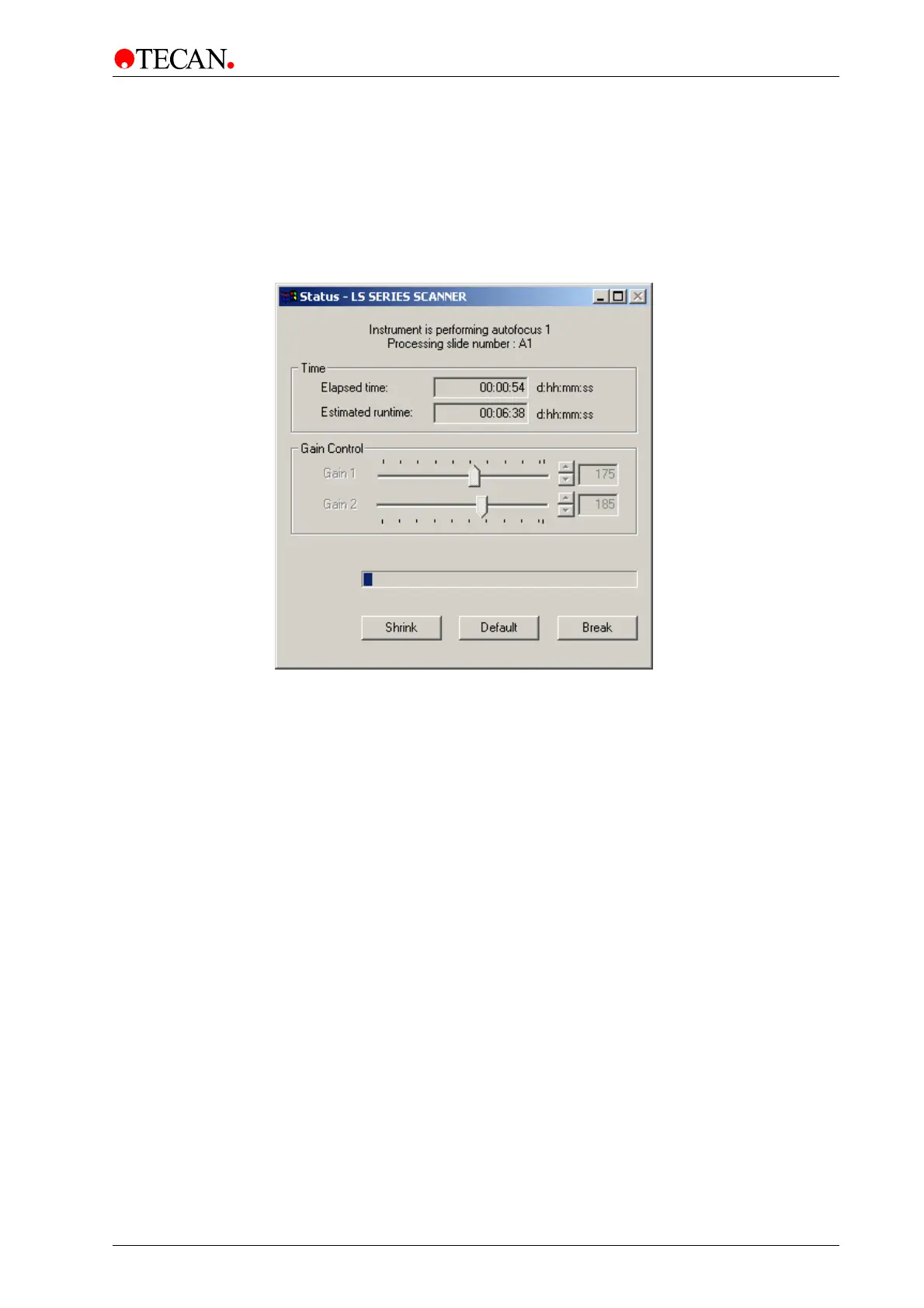

using the current measurement parameters. The Status dialog box appears and
displays the current process of the scanner as static text.
In the Time group box, the Elapsed time of the measurement and the Estimated
run time are shown.
In the Gain control group box, the gain of the PMT can be adjusted online during
the measurement.
The display of the Status dialog box can be changed using the Shrink or the
Default view button.
Click Break to interrupt the measurement.
The Status dialog box contains the following elements:
Instrument is…
This static text gives information about the current
process, e.g.:
Instrument is performing autofocus
Instrument is measuring dark
Instrument is measuring image
