4. Firmware and Software Description
2004-10 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1 4-5
4.3.2 Starting the sunrise Instrument Settings
In case an instrument is already connected to one of Tecan’s programs, close the
program or disconnect the instrument from the program.
Click the
sunrise Instrument Settings icon on the desktop, if present, or click the
Start button on the lower taskbar and select Programs – TECAN and select
sunrise Instrument Settings.

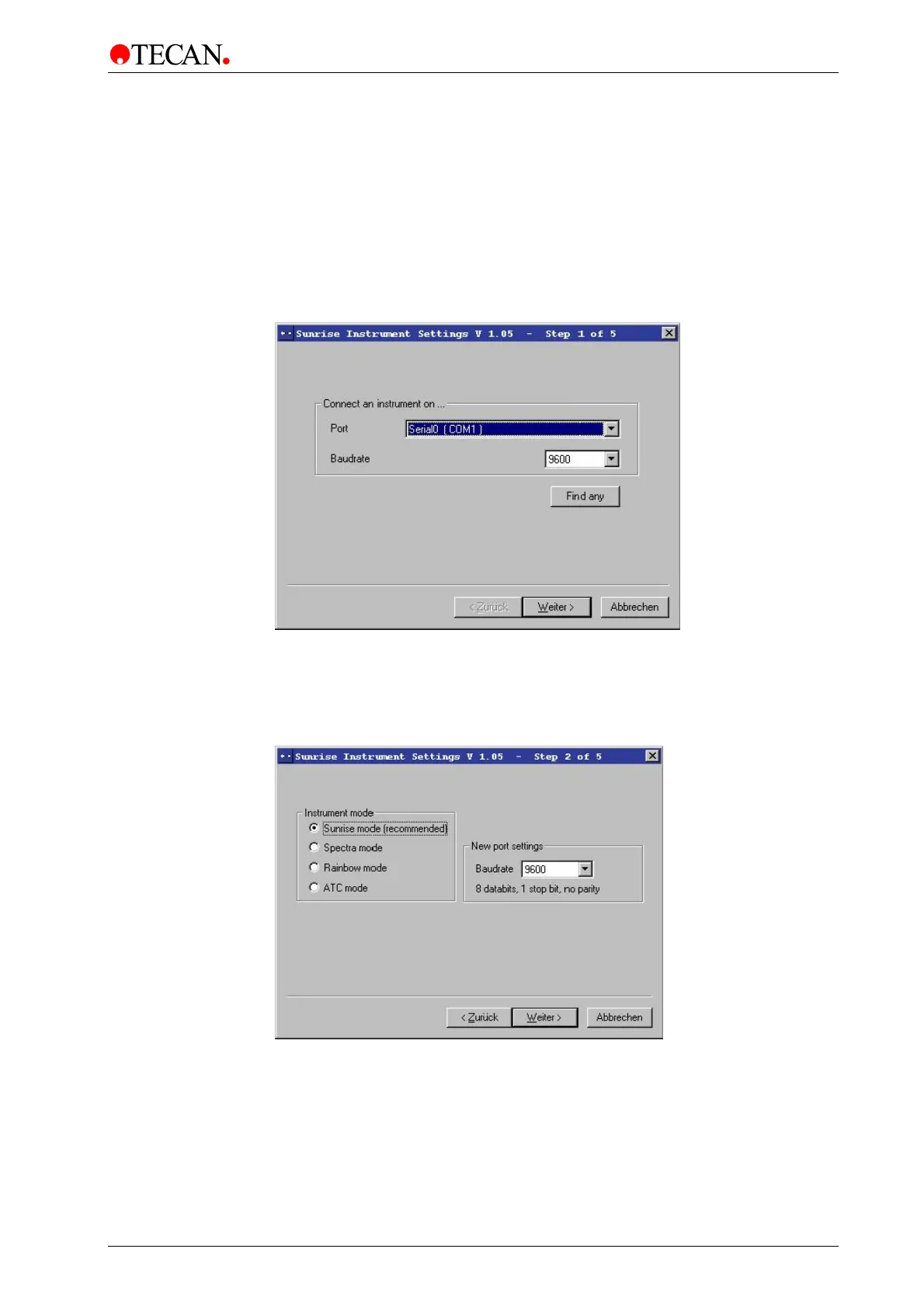

The following dialog box is displayed:
Select the correct communication port and the baudrate. Click Next.
4.3.3 Define Instrument Mode
The following dialog box is displayed:
To use the instrument with software designed for former TECAN readers, select
the appropriate instrument modes and baudrate. Click Next.
sunrise mode
It is recommended to use the
sunrise mode with 9600 baud.
Spectra mode Simulates a SPECTRA Reader.
Rainbow mode Simulates a Rainbow Reader
ATC mode Simulates an ATC Reader.
