8.16 WinCE Board
The WinCE Board controls the Touchscreen and processes all the
measurement data.
The WinCE Board is replaced using the following procedure:
1. Switch the instrument OFF.
2. Remove the main power cable from the socket.
3. Remove the instrument top cover.
4. Remove the Touchscreen.
5. Disconnect the USB stick.
6. Unscrew the five screws where the complete chassis fixed with.

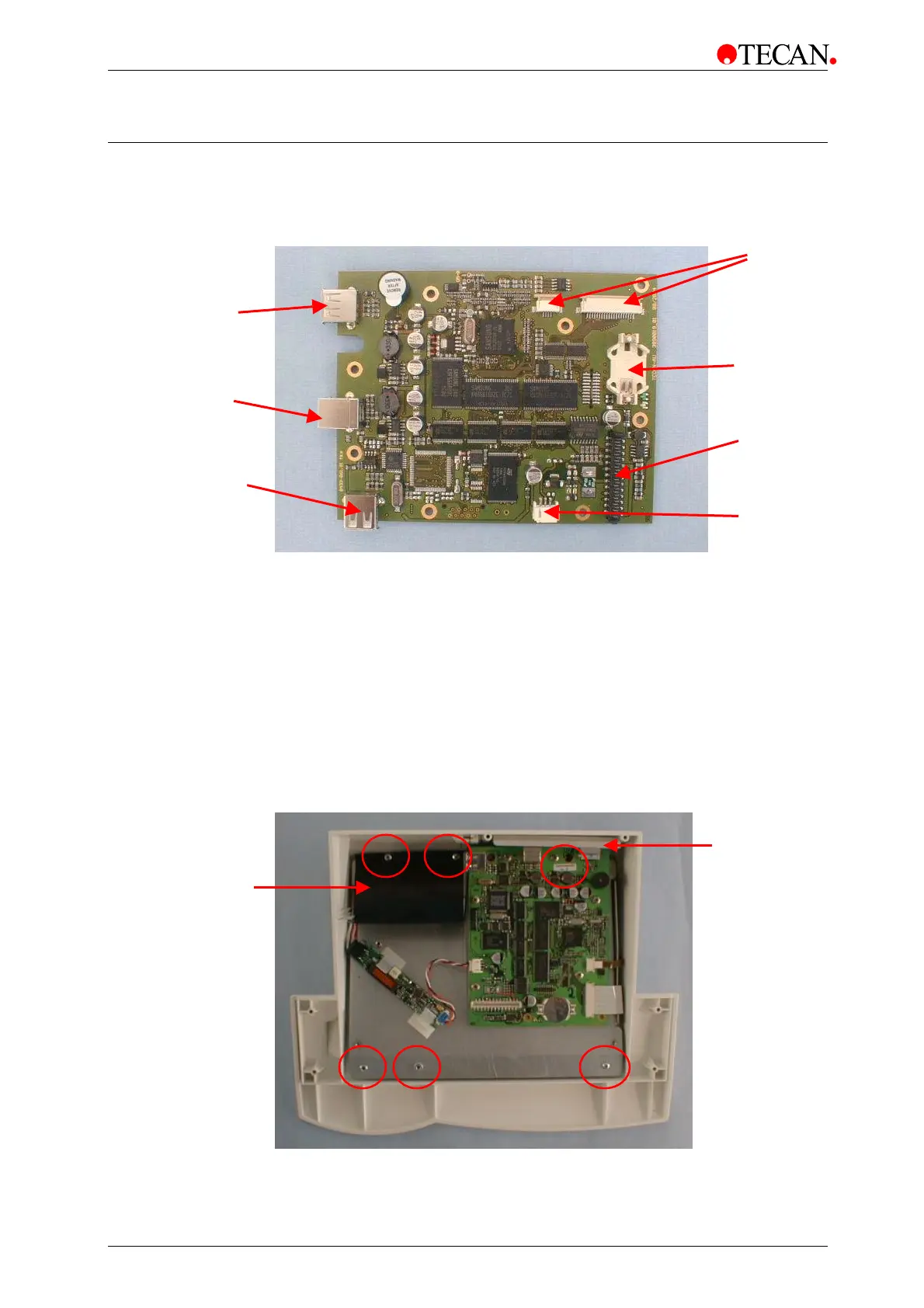

Connector to
Touchpanel
Batter
y
Connector to
Mainboard
Connector to
Converter
USB-connector
Internal
USB connector
Connector to PC
for image
downloading)
EMV
shield
USB-PCB
shield
