8. Electronic System
2004-10 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1 8-9
8.8 Power Board (Tuneable Wavelength / 6 Filter)
The board has the same function as the standard board but there is one more
motor driver for control the filter carriage motor (DC Servo Motor by TW Option
and 6-Filter Option).There is also a voltage regulation for the TW board.

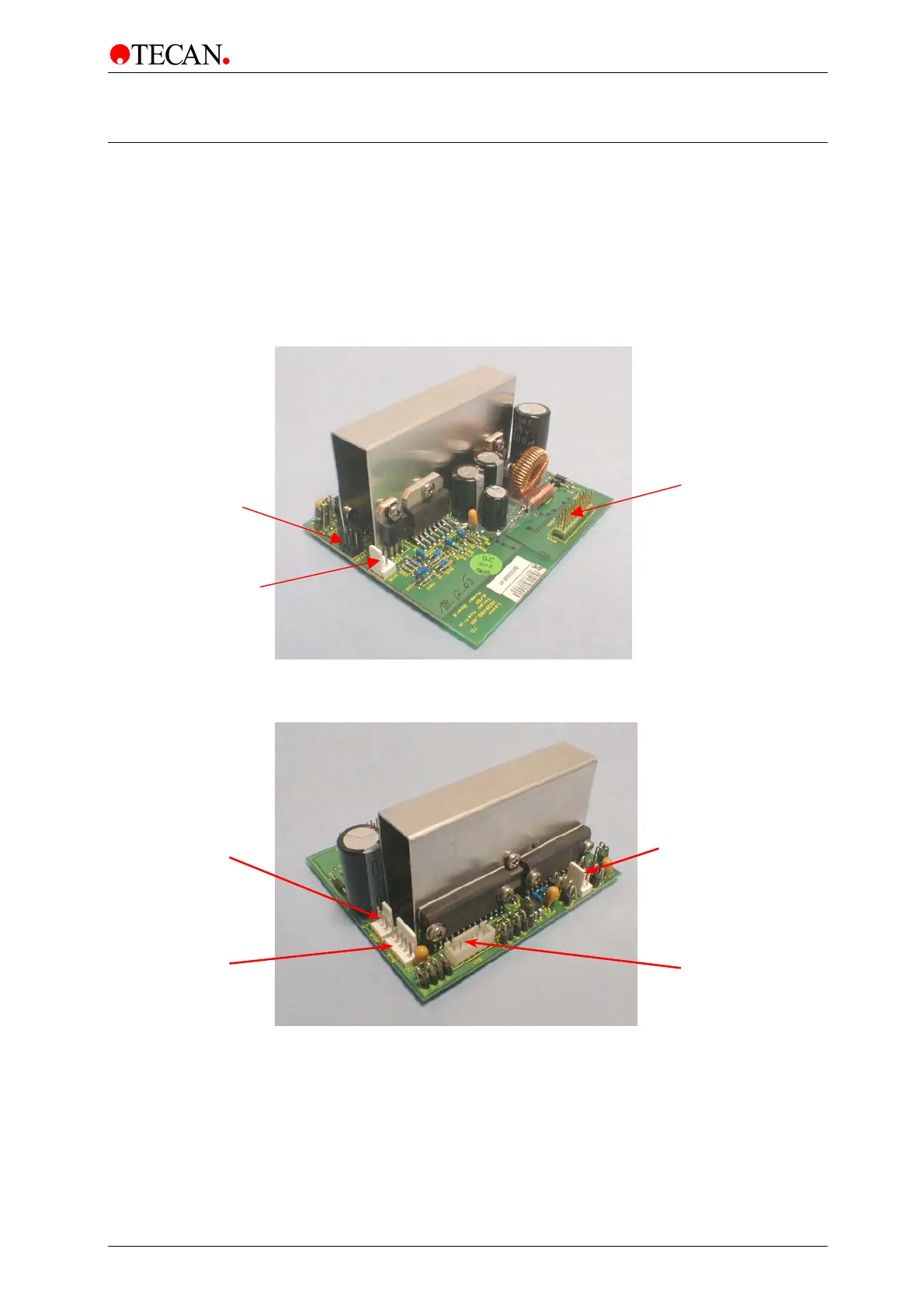

Front view:
Rear view:
Connector to
CPU board
Connector to
Power On LED
Connector to
lamp
Connector to filter transport
Motor (DC Servo Motor)
Connector to
transport motor
Connector
to fan
Connector to
power supply
