6.8 Filter Guide ( Tuneable Wavelength/ 6 Filter):
For replacing these parts please use to the following procedure:
1. Switch the instrument OFF.
2. Remove the main power cable from the socket.
3. Remove top cover and upper EPAC (see 5 Removing and Replacing the
Instrument Cover).
4. Remove front cover.
5. Remove power board.
6. Disconnect ST1, ST8, ST7, ST3, ST15, ST20 and ST 21 from the main board
and all connections of the of power board.
7. Remove the power board.
8. Disconnect fiber from the filter guide.
9. Remove the transport box.
10. Remove EPAC filter guide.
11. Replace either sensor or complete filter guide.
12. Replace all parts in reverse order.

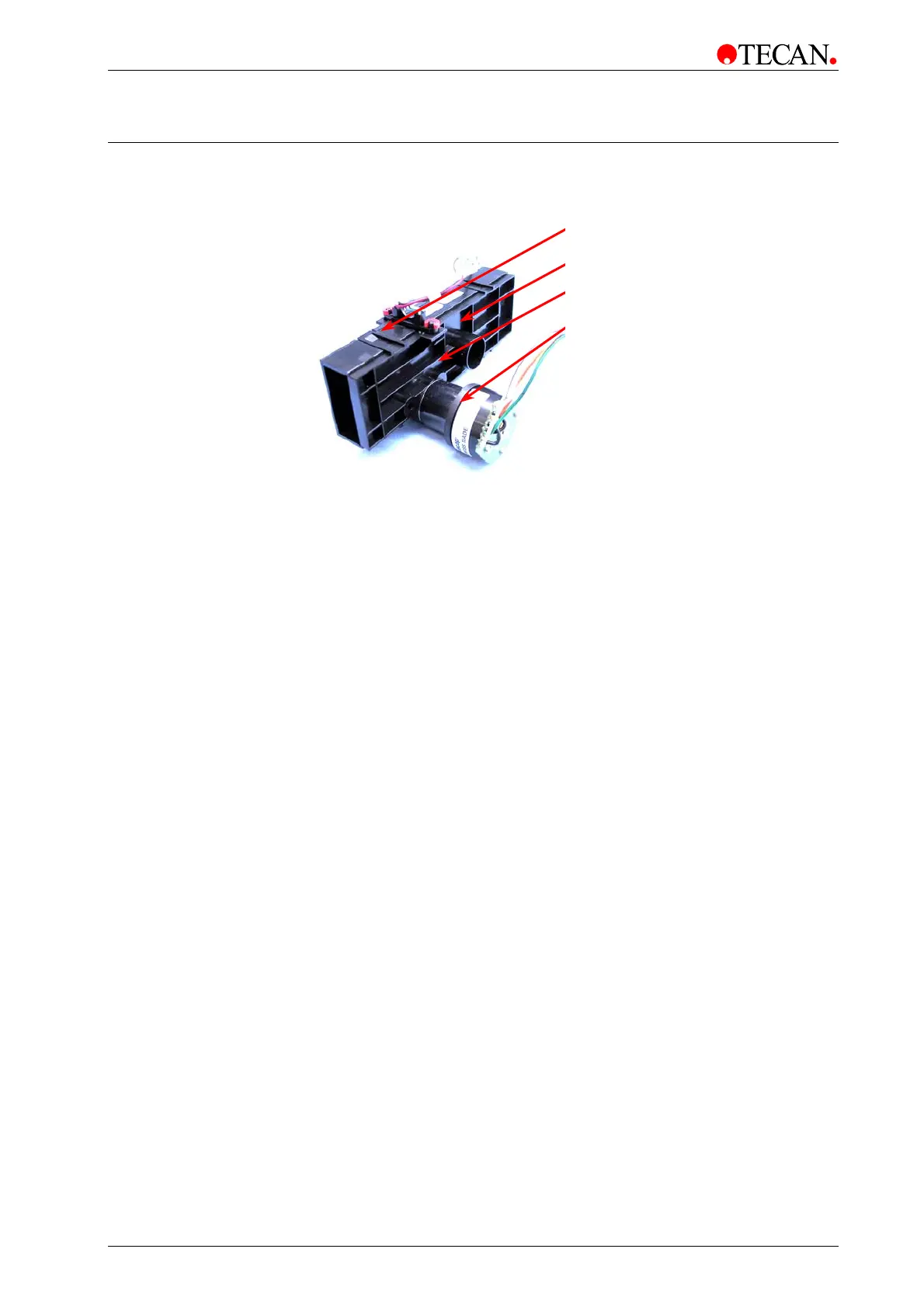

Sensor
Filterslide housing
Fiber slot
DC-Servo motor
