5. Removing and Replacing the Instrument Cover
5-2
Technical Manual for sunrise
RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1
2004-10
5.

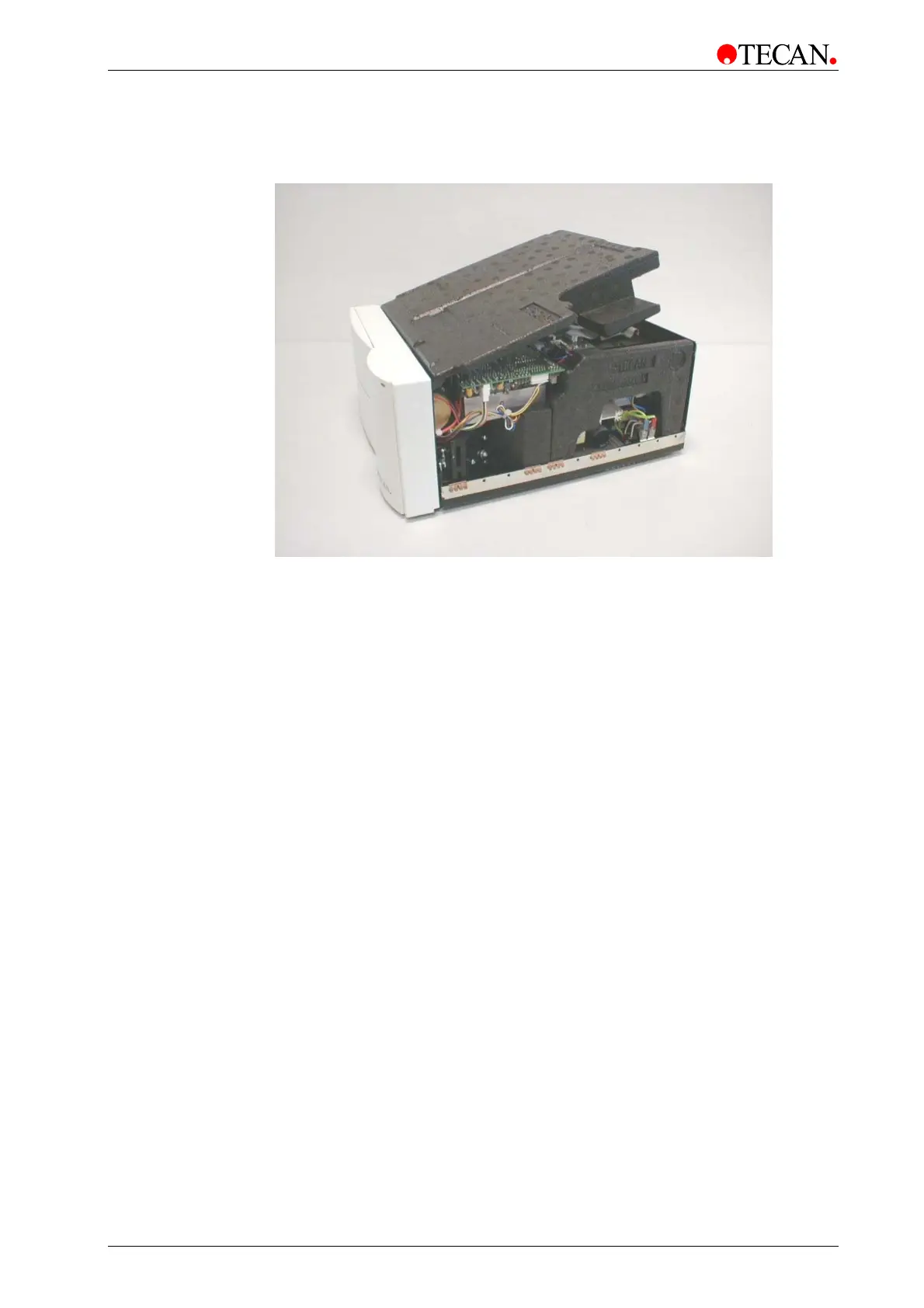

Carefully remove the E-Pa
ck top cover.
To replace the top cover, follow t
he instructions in reverse order.
