7. Mechanical System
7-6 Technical Manual for sunrise RC, TW, TS, TC, BC, 6F No. T 137 302 Rev No. 1.1 2004-10

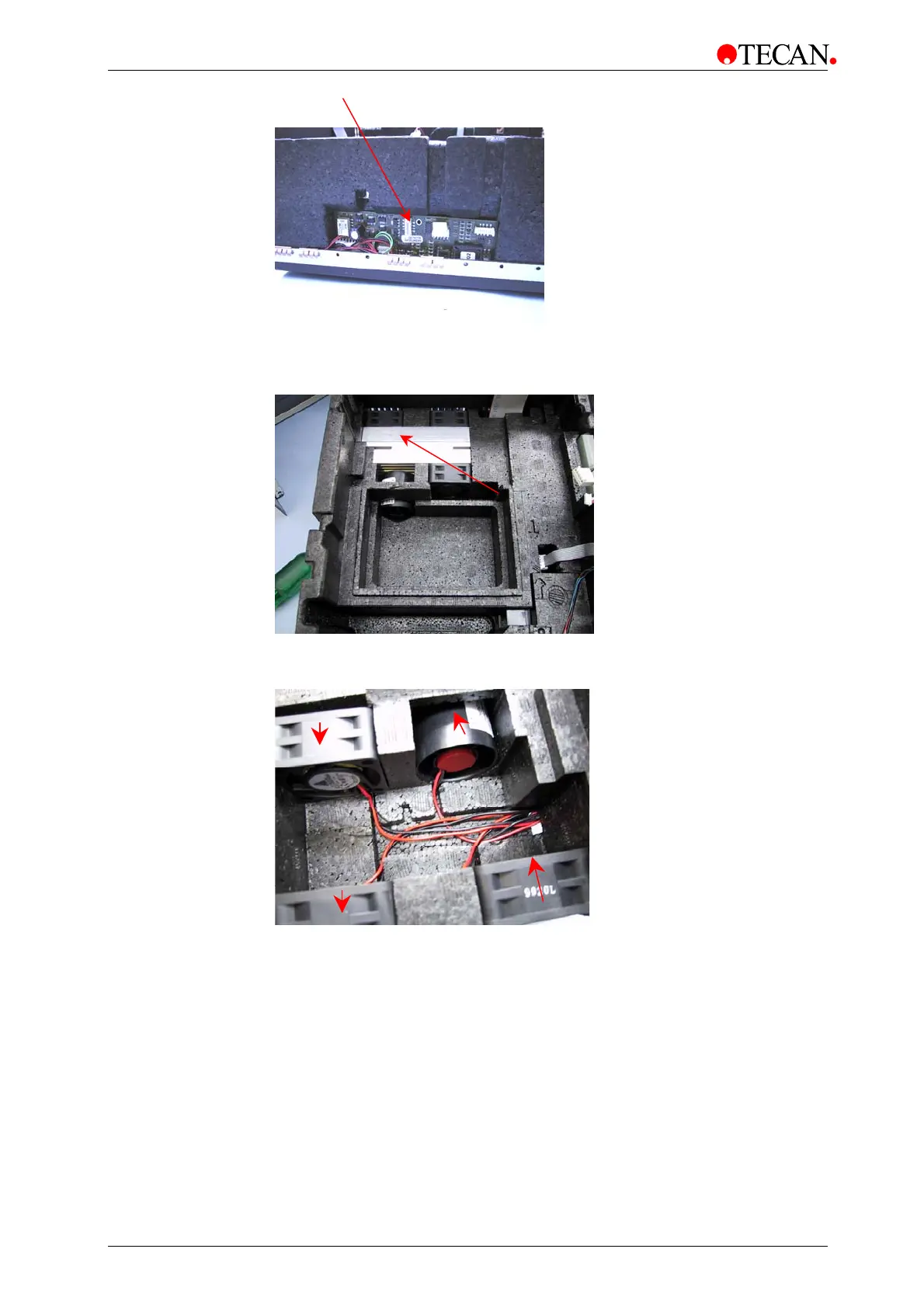

11. Remove the Thermo Board and disconnect all cables on the board.
12. Remove the Peltier module including cooling unit
13. Remove the fans and make a note of the position of each fan, so that it can
be returned to the same location
14. Replace all Parts in reverse order.
