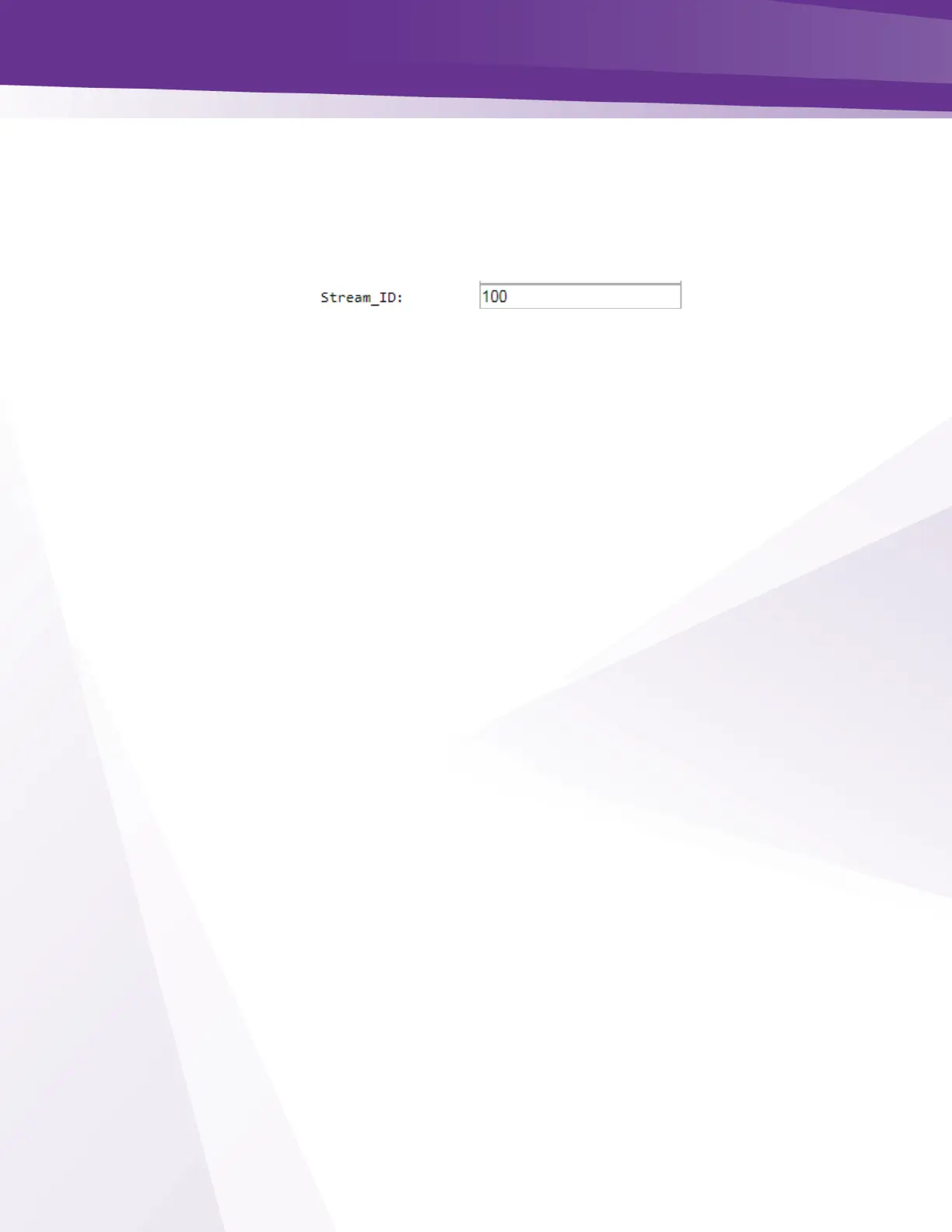

Page 51
Stream_ID
- This field is optional and allows a unique identifier to be applied to every video
stream produced by the COM3000 system.
➢
The allowable value
s for this field are
any whole nu
mber between 1 and
65535. This field is
to be left as defau
lt for normal operati
on.
o
To enable a second
audio strea
m set the Stream_ID
to 54000.
