TechniSat DigiCorder S2 User Manual

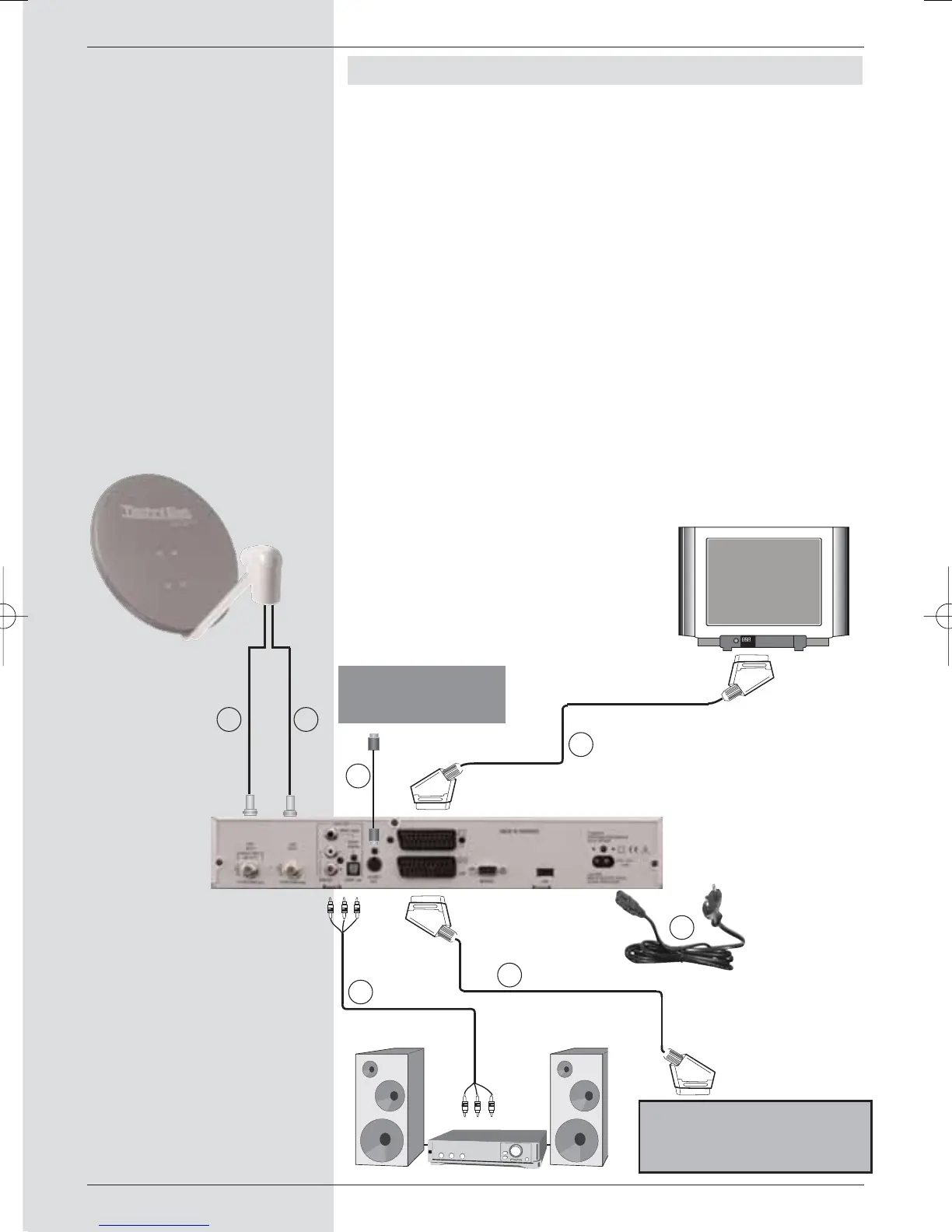

4 Connecting the DVB receiver
a. Mains connection
b. Connect the LNB 1 with the LNB input 1 of the
DVB receiver. (Please note: when operating the unit
with an antenna signal, the LNB must definitely be
connected to the LNB input 1.)
c. Connect the LNB with the LNB input 2 of the DVB
receiver.
d. Scart connection of the DVB receiver with the
television set.
e. Scart connection of a video recorder with the VCR
Scart socket of the DVB receiver.
f. Connection of the S-Video output with the
S-Video input of an appliance (e.g. beamer).
g. Connection of the audio outputs with a hi-fi system.
Where mention is made of items a b c etc. this refers to the
illustration on page 10.
12
VCR
a
g
e
c
f
d
b
z.B. Beamer
BED_ANL_DIGICORDER_S2_28/03.QXD 30.03.2006 11:37 Uhr Seite 12

TechniSat DigiCorder S2 Specifications

General

Brand	TechniSat
Model	DigiCorder S2
Category	Receiver
Language	English
