GROUP CYCLE: Service & Maintenance manual rev. 6.4
Page 6.12
6.5.4.2 BELT transmission version

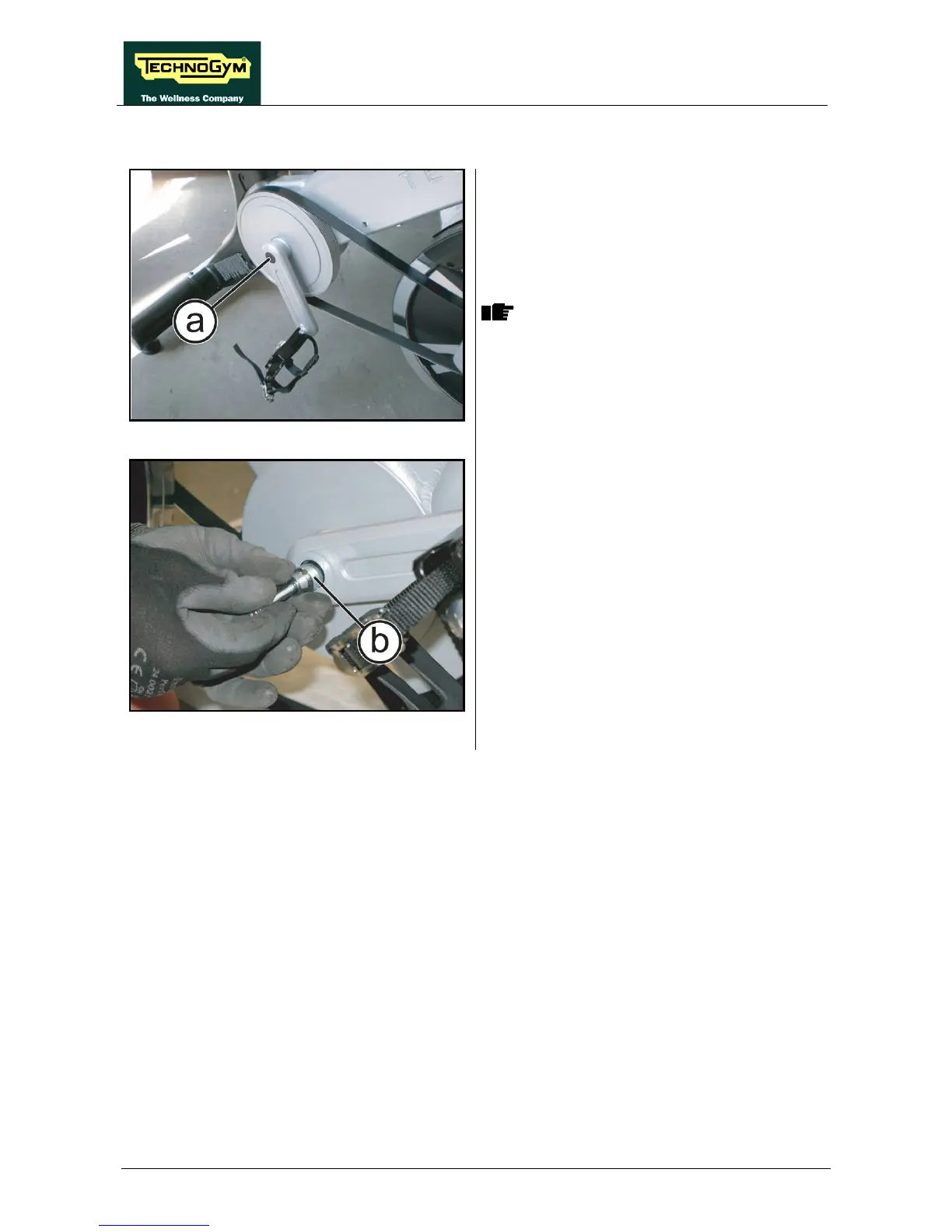

Figure 6.5-9
Remove the lateral guard,
as indicated at the
paragraph: 6.4Disassembling the Guards”.
Loosen the belt tension to facilitate the
operations that follow.
1. Remove the pedal crank cap (a)
using a flat
screwdriver.
Figure 6.5-10
2. Back off the pedal crank fixing screw (b)
using a 14mm socket wrench, as shown in
the figure at side.
Continued on following page...
