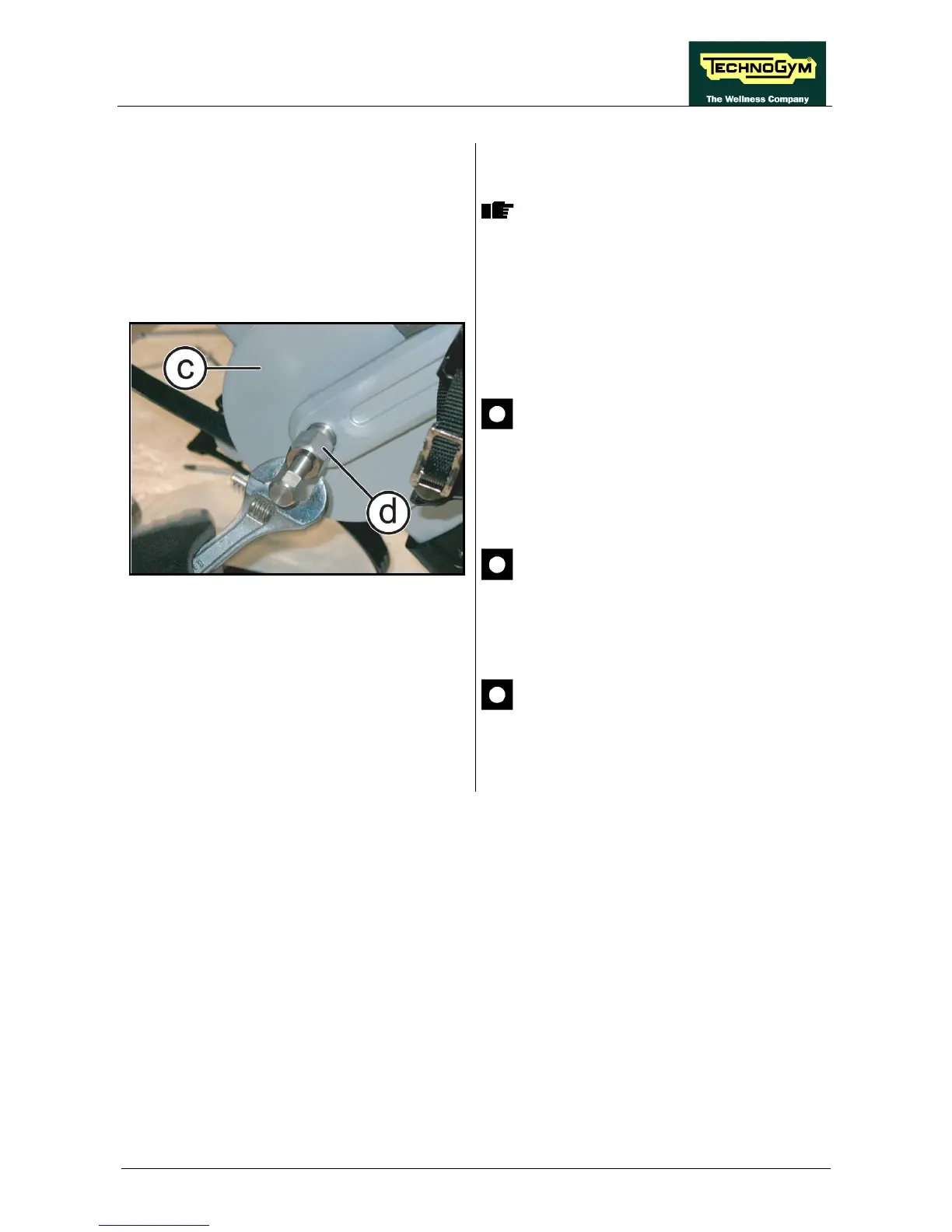

Figure 6.5-11
3. Remove the pedal crank (c) using a pedal
crank extractor (d).
If the pedal crank extractor pin is not
long enough, use an additional pin
checking the diameter is 10mm ≤ D
≤15mm.
To reassemble the pedal crank, carry out the
above steps in reverse order, considering the
note below:
CAUTION: The pedal cranks must be
lock down individually, one at a time.
This means you must block the pedal
crank it self while locking down using
the torque wrench.
CAUTION: During the reassembly
place some drops of Blue LOCTITE 243
and lock down the
pedal crank screw
using a torque wrench set for 40Nm.
CAUTION: Once the replacement
readjust belt tension as described at the
paragraph: 7.2“
Adjusting the BELT
tension”.
