7.19. DISASSEMBLING THE UP-DOWN FRAME

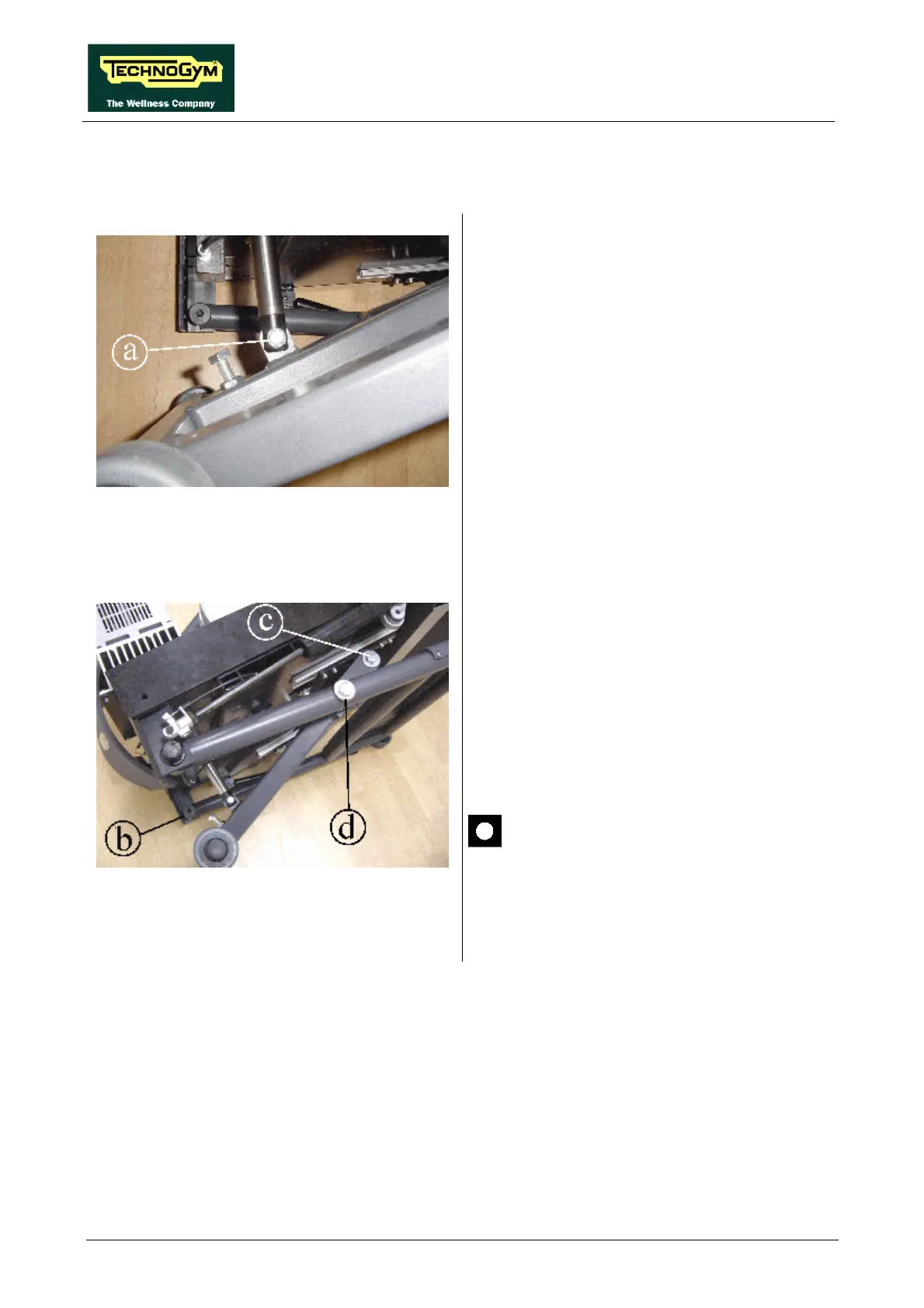

Figure 7.19-1
1. Raise the machine to its maximum incline
position.
2. Overturn the machine on its right side.
3. Remove the snap ring a using the special
pliers.
4. Disconnect the up-down motor rod from the
UP-DOWN FRAME.
Figure 7.19-2
Working on both sides:
5. Back off the nut b, using 10-mm hex T
wrench.
6. Back off the nut c, using two 17-mm
wrenches.
7. Remove the UP-DOWN FRAME.
8. The part with the front wheels can be
separated from the part with the rear wheels
by backing off the screws d.
When reassembling, lock down screws c
using a torque wrench with a setting of
50 Nm / 36.8 ftlbs.
To reassemble the UP-DOWN FRAME, carry
out the above steps in reverse order.
