SPAZIO FORMA: Service & Maintenance manual - rev. 1.0
Page 7.5
7.5. DISASSEMBLING THE CARDIO RECEIVER

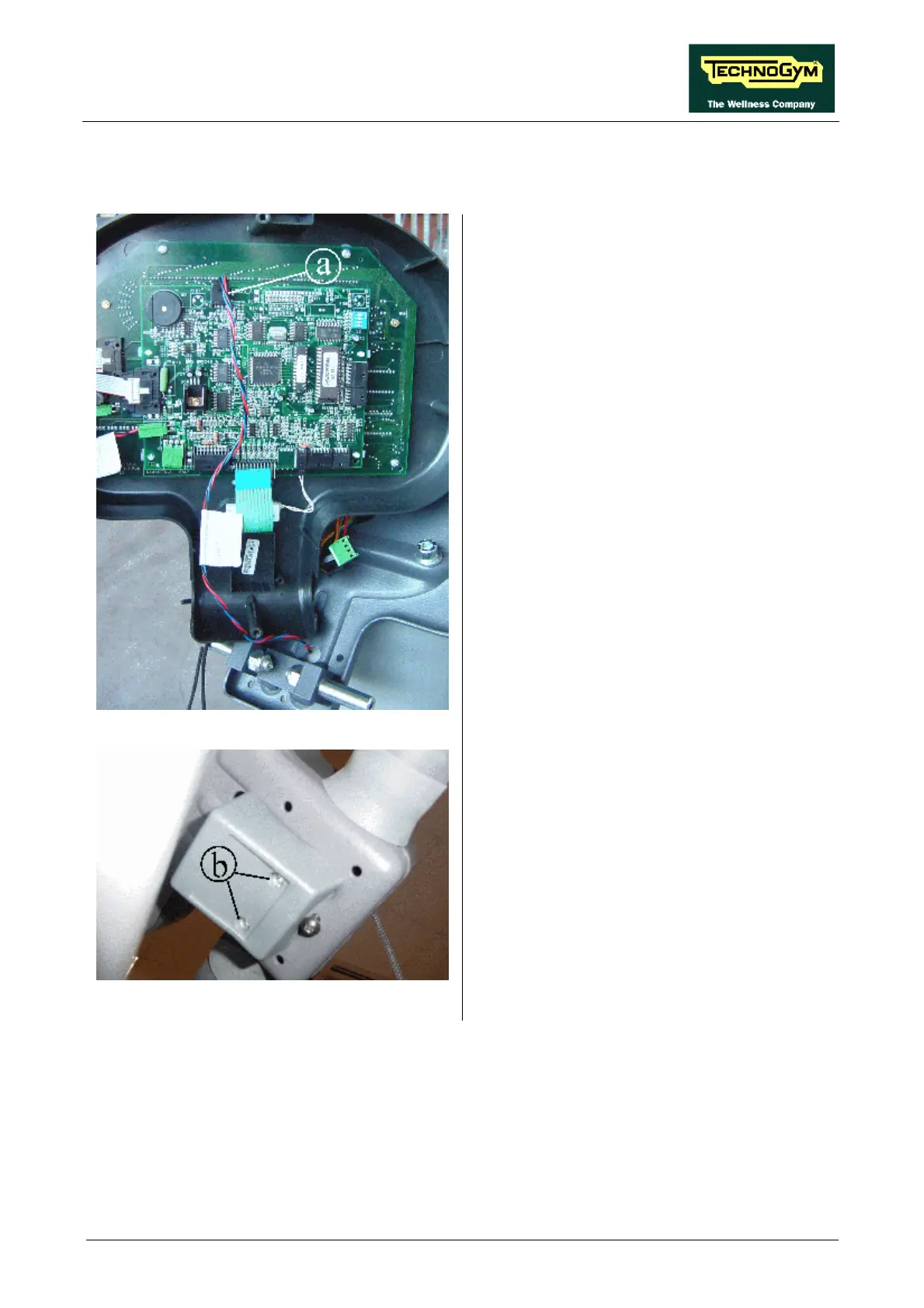

Figure 7.5-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display placed on a work bench:
1. Unplug connector a of cable SF-2 from the
CPU board.
Figure 7.5-2
2. Back off the two screws b using a 3-mm hex
T wrench.
3. Remove the RECEIVER.
To reassemble the RECEIVER, carry out the
above steps in reverse order, placing it between
the 2 foam pads.
