7.7. DISASSEMBLING THE GAS DAMPER

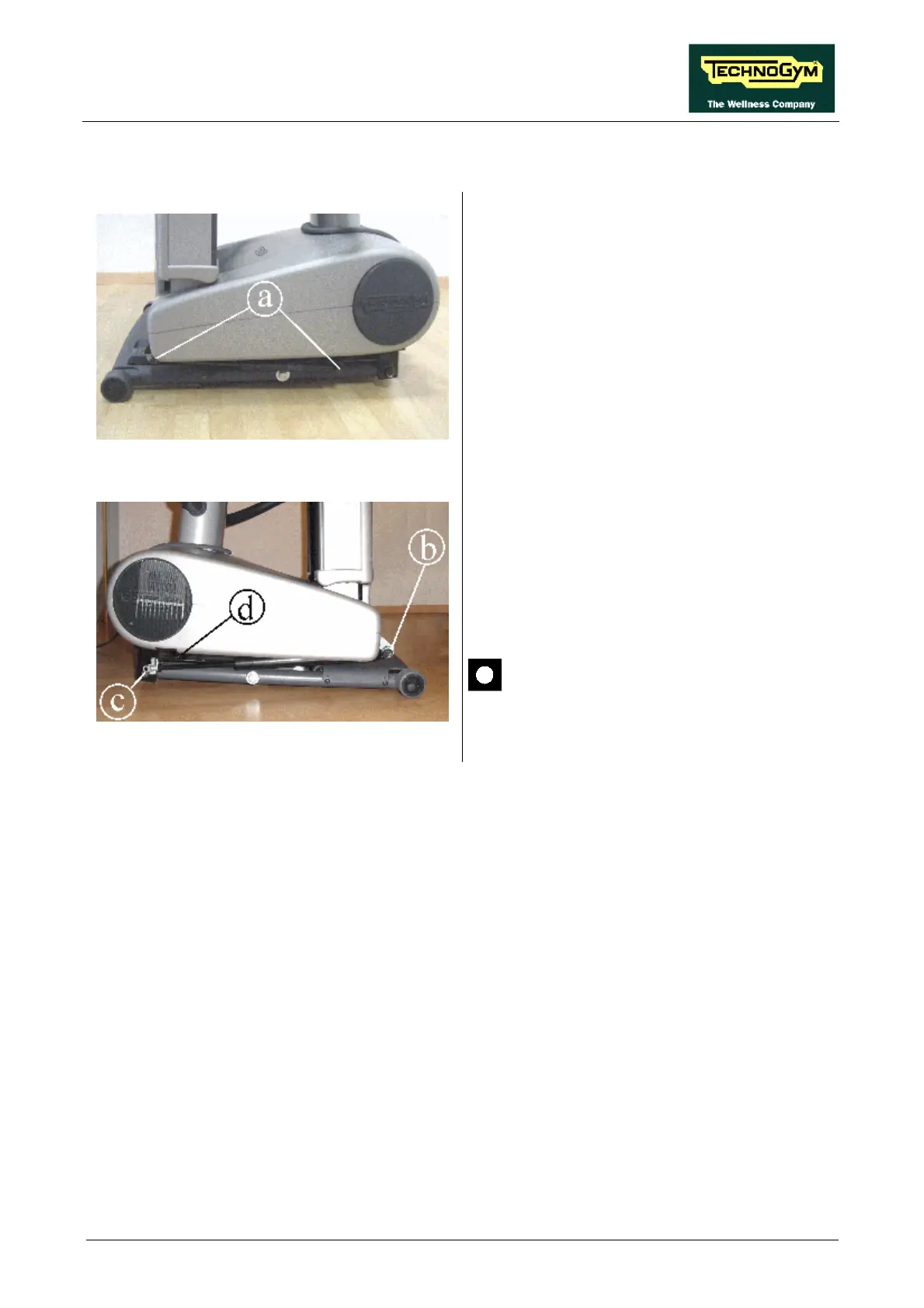

Figure 7.7-1
1. Close the machine so that the gas dampers
are entirely discharged.
2. Using a 4-mm hex wrench, back off the two
screws securing the right gas damper to the
machine frame.
3. Remove the gas damper.
Figure 7.7-2
4. Back off the screw b, using a 4-mm hex
wrench.
5. Remove the snap ring c which fixes the
damper to the machine frame.
6. Disconnect the steel cable d and remove the
gas damper.
When reassembling, lock down screws a
and b using a torque wrench with a
setting of 14.7 Nm / 10.8ftlbs.
