SPAZIO FORMA: Service & Maintenance manual - rev. 1.0
Page 6.11
6.4.1. THE INVERTER DISPLAY SHOWS E01, E02, E03, E04 OR E05
These inverter error messages are related to output short-circuit problems.
1
NO
Replace the inv erter
YES
Is the inv erter output short-
circuited?
Is there a short-circuit on the
motor cable terminals?
Replace the belt motor
2
YES
Does the machine resume
correct operation af ter being
turned of f f or 1 minute?
YES
Probable interf erence. The
machine is OK
Replace the inv erter
NO
NO
E02 E03 E04 E05E01

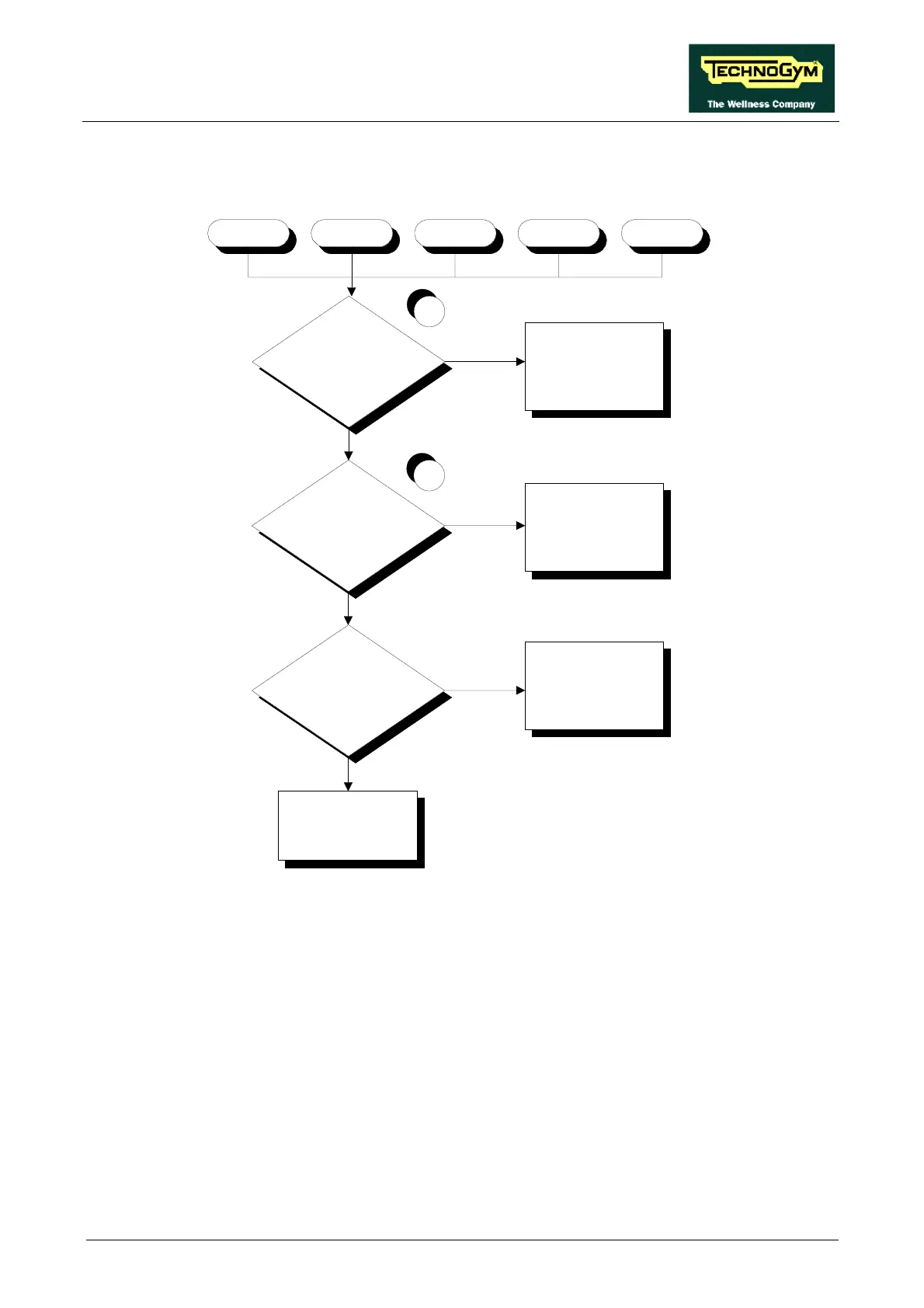

Follow the procedure step by step to correctly diagnose the problem. Take particular care with the
checks highlighted by circled numbers, which are described in detail below:
(1) Disconnect the motor cable from the inverter and place the tester probes between its U-V, U-
W and V-W terminals. The measured resistance should be very high, in the order of MOhm. It
is difficult to make a stable measurement of resistance, however a phase can be considered
short circuited or defective when the measured resistance is in the order of a few tens of
Ohms.
(2) Place the tester probes between the blue – black, blue – brown and black – brown conductors
of the motor cable. The measured resistance should be 3.3 Ohm.
