SPAZIO FORMA: Service & Maintenance manual - rev. 1.0
Page 8.4
8.4. ALIGNING THE TREAD-BELT MOTOR DRIVE-BELT

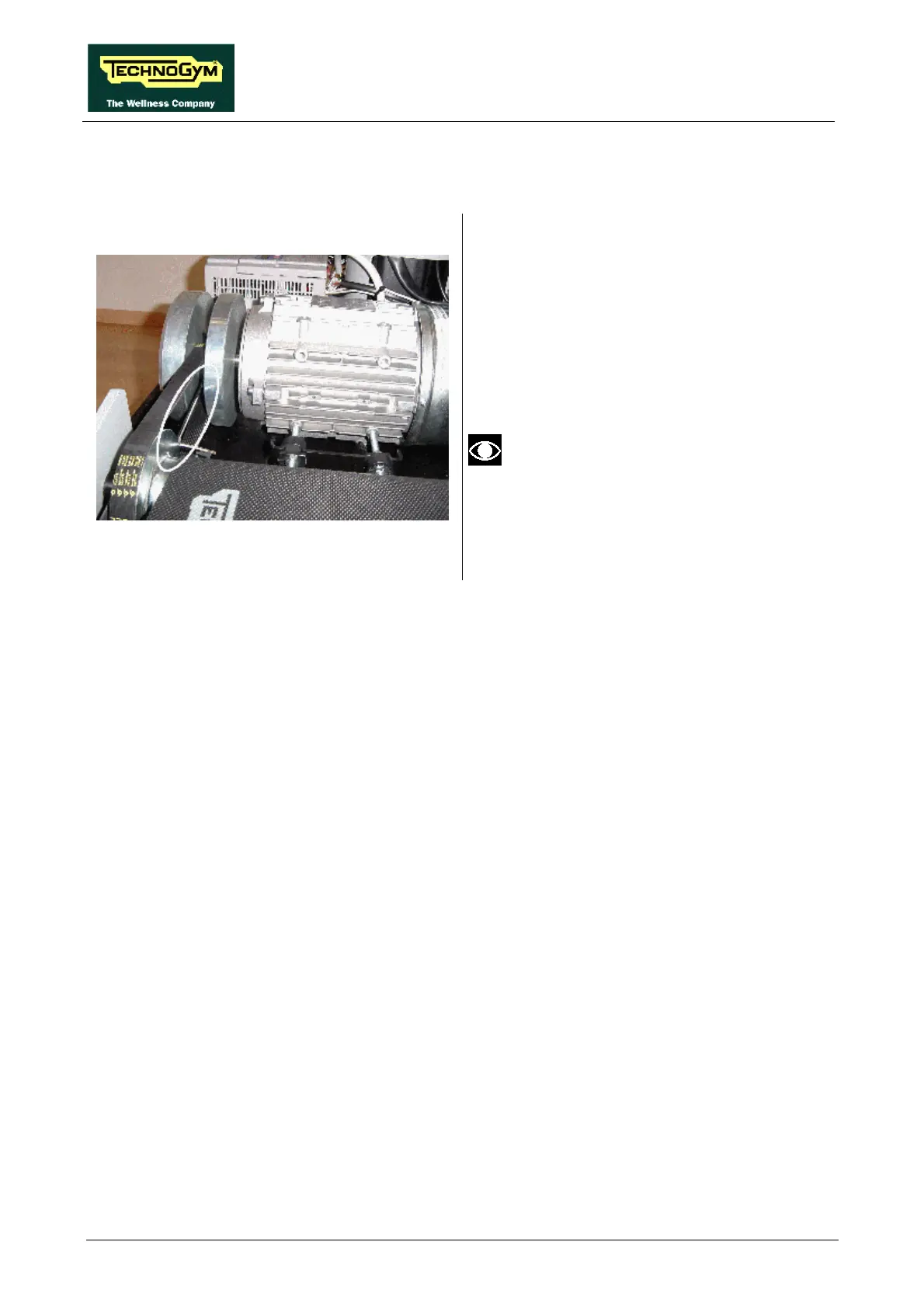

Figure 8.4-1
1. Carry out the procedure described in
paragraph 7.8. “Disassembling the motor
guard”.
2. Using a 3-mm hex wrench, back off the grub
screw on the motor shaft pulley.
3. To adjust the alignment, use a straight-line,
rested against the driving roller pulley, and
make sure that the pulley and flywheel are
parallel and aligned.
If it proves difficult to do this operation,
slacken the belt tension as described in
paragraph 8.5. .
4. After completing the procedure, lock down
the grub screw again.
