SPAZIO FORMA: Service & Maintenance manual - rev. 1.0
Page 7.8
7.8. DISASSEMBLING THE MOTOR GUARD

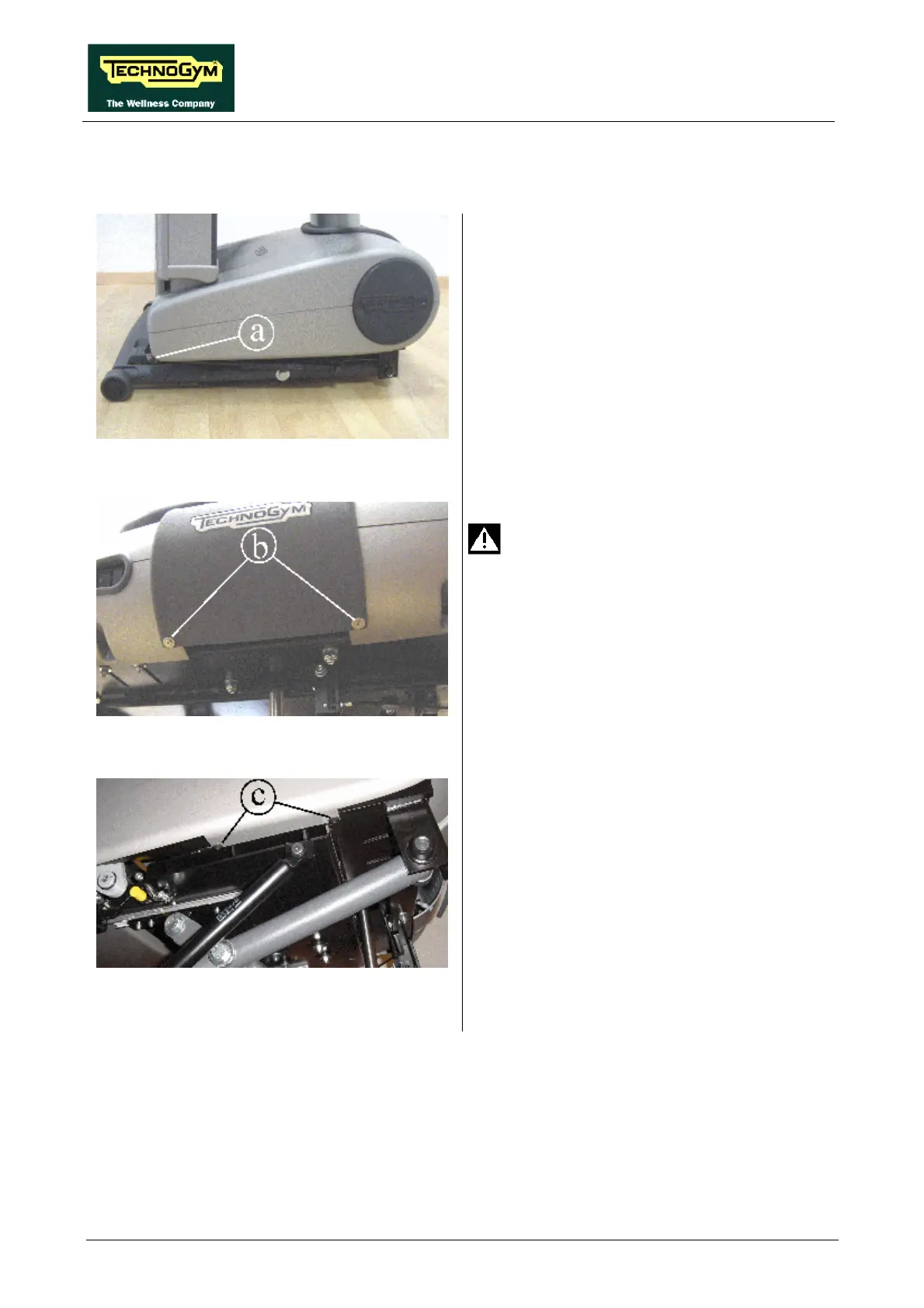

Figure 7.8-1
1. Close the machine so that the gas dampers
are fully discharged.
2. Back off the screws a on either side, using a
4-mm hex wrench.
3. Rest the gas damper on the ground.
Figure 7.8-2
4. Open the machine to the working position.
Take care while lowering the running
deck, as this action is no longer assisted
by the gas dampers.
5. Raise the machine to an incline of
approximately 5%.
6. Back off the two screws b using a small
Phillips screwdriver.
7. Lift up the rubber guard, and fix it to the
column with some adhesive tape.
Figure 7.8-3
8. On each side of the machine, back off the
two screws c using a 4-mm hex wrench.
Continued on the following page →
