SPAZIO FORMA: Service & Maintenance manual - rev. 1.0
Page 7.12
7.10. DISASSEMBLING THE FOOTREST GUIDE

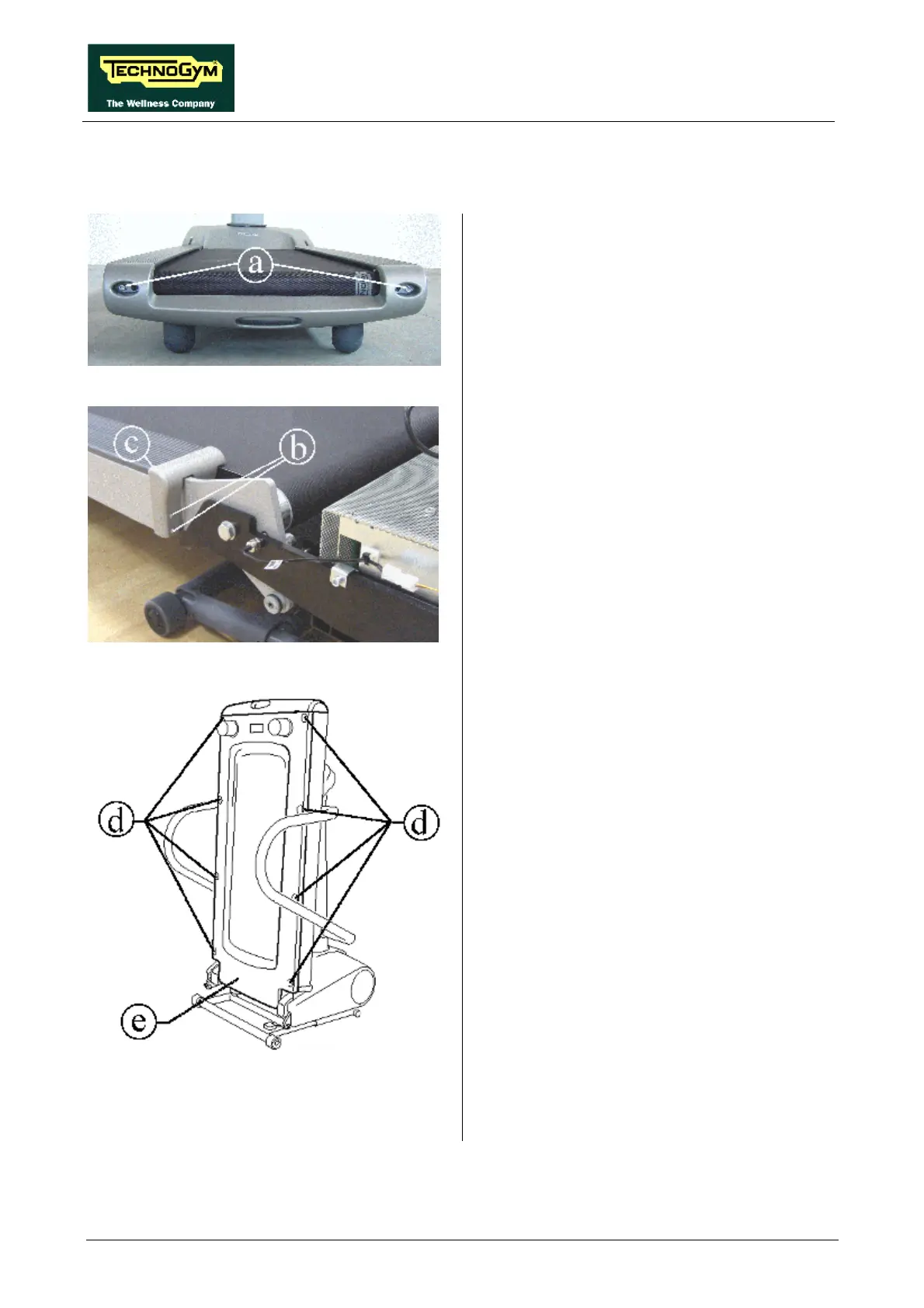

Figure 7.10-1
Carry out the procedure described in paragraph
7.8. “Disassembling the motor guard”.
1. Back off the screws a using a 6-mm hex T
wrench and remove the rear covering.
Figure 7.10-2
On each side of the machine:
2. Back off the 2 screws b using 2.5-mm hex T
wrench and remove the covering c.
Figure 7.10-3
3. Close the machine, back off the 8 screws d
using a medium Phillips screwdriver, and
remove the guard e.
Continued on the following page →
