SPAZIO FORMA: Service & Maintenance manual - rev. 1.0
Page 7.11

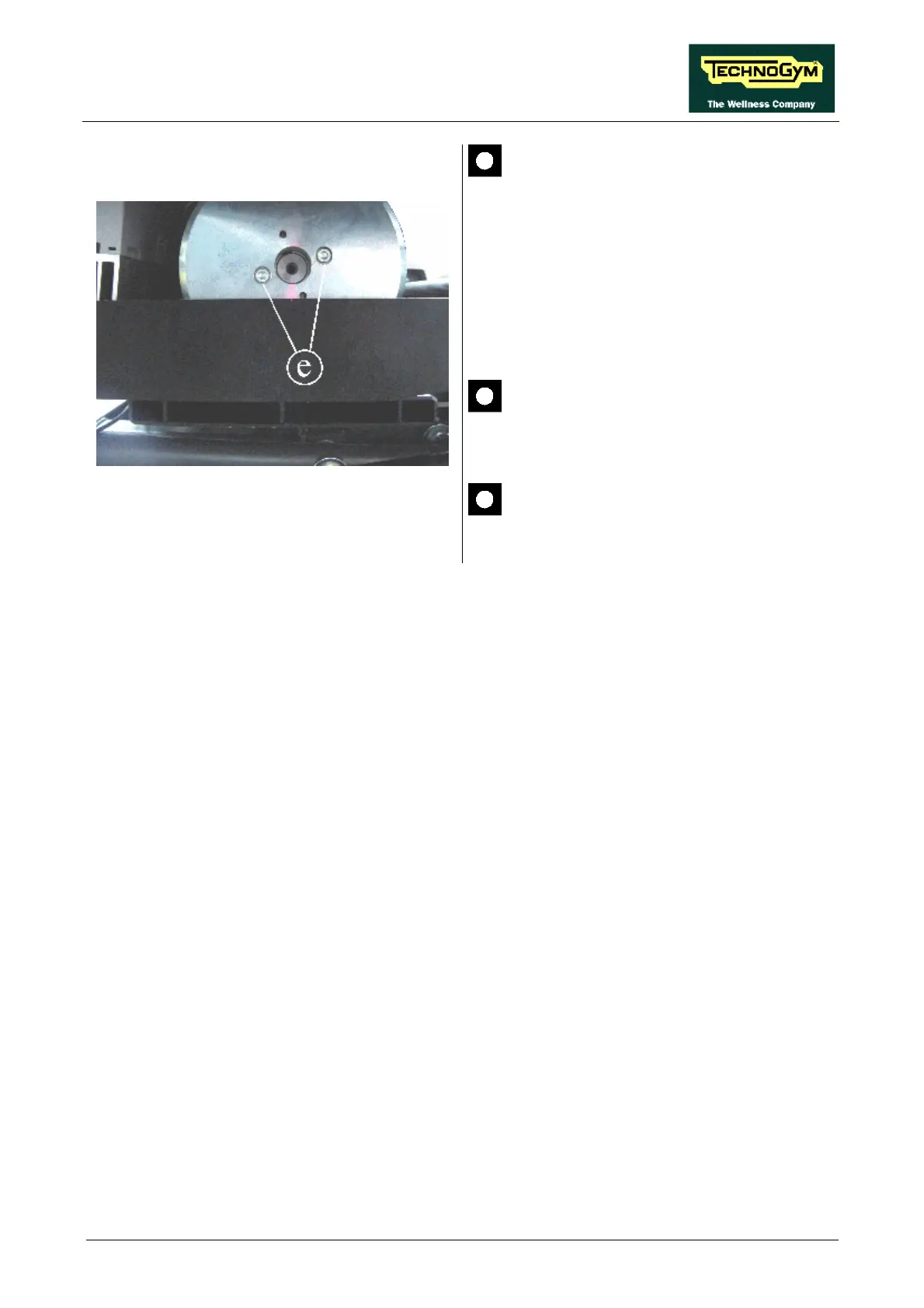

Figure 7.9-4
If it is necessary to disassemble the outer
flywheel, use a pen to mark the top part
of both flywheels as shown in the figure.
11. Back off the two screws e using a 4-mm hex
wrench.
12. Remove the flywheel toward the outside,
pulling it away from the two pins that
connect it to the motor pulley.
To reassemble the flywheel the right
way round, use the markings made
previously.
When reassembling, lock down screws a
and b using a torque wrench with a
setting of 10.3 Nm / 7.6 ftlbs.
