7.11. DISASSEMBLING THE REAR ROLLER

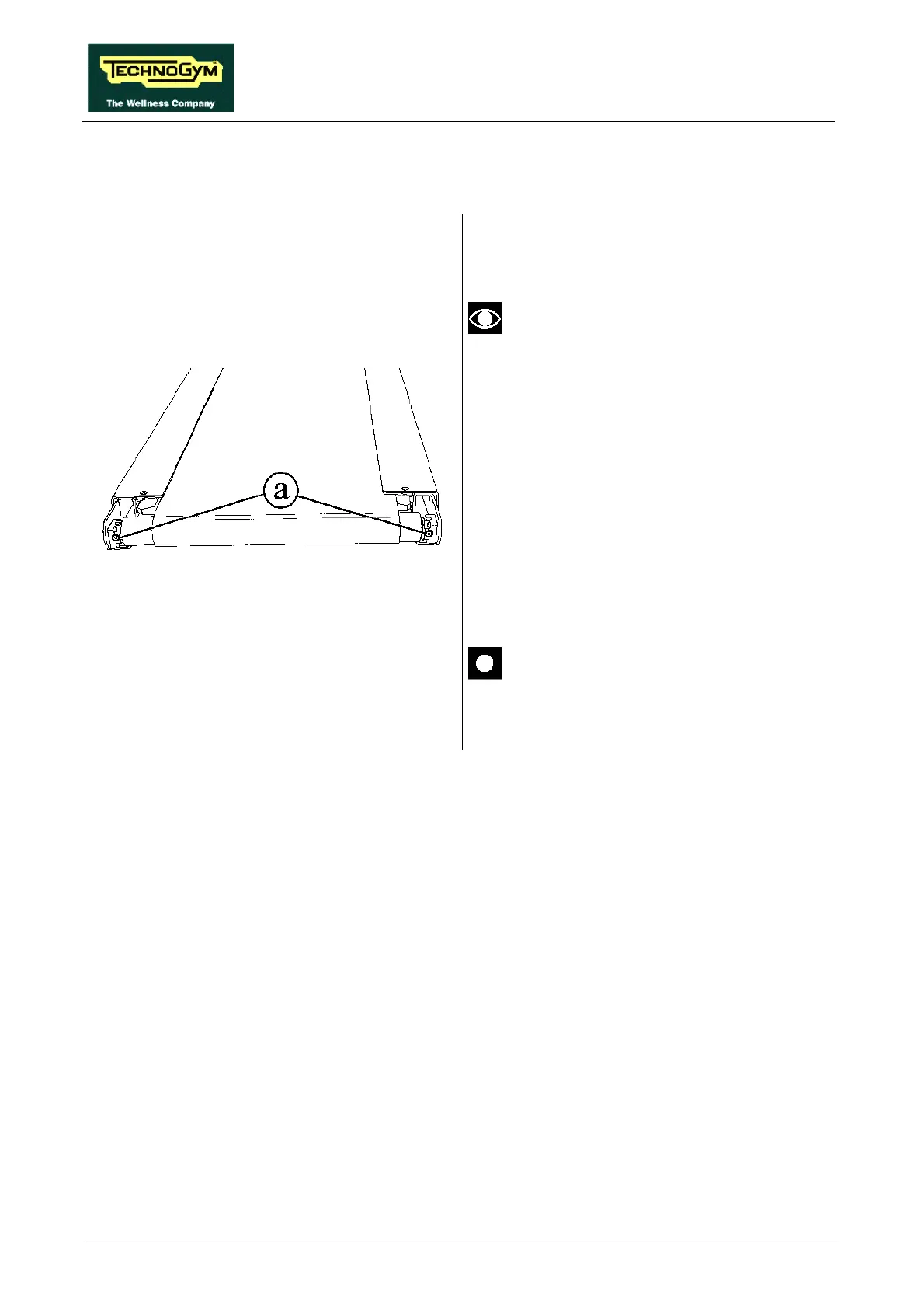

Figure 7.11-1
Carry out the procedure described in paragraph
7.8. “Disassembling the motor guard” e .7.10.
“Disassembling the footrest guide”.
To facilitate the subsequent tightening
of the tread-belt, move the seam to the
underside of the machine and measure
out a distance of 1 m on the belt,
marking its ends with a white felt tip
pen.
1. Slacken the belt tension, backing off the 2
screws d using a 6-mm hex T wrench.
2. Pull the REAR ROLLER out of its supports.
3. Remove the REAR ROLLER from the side.
To reassemble the REAR ROLLER, carry out the
above steps in reverse order.
After completing the procedure, adjust
the tension and centering of the tread-
belt as described in paragraphs 8.2. and
8.3. .
