SPAZIO FORMA: Service & Maintenance manual - rev. 1.0
Page 7.9

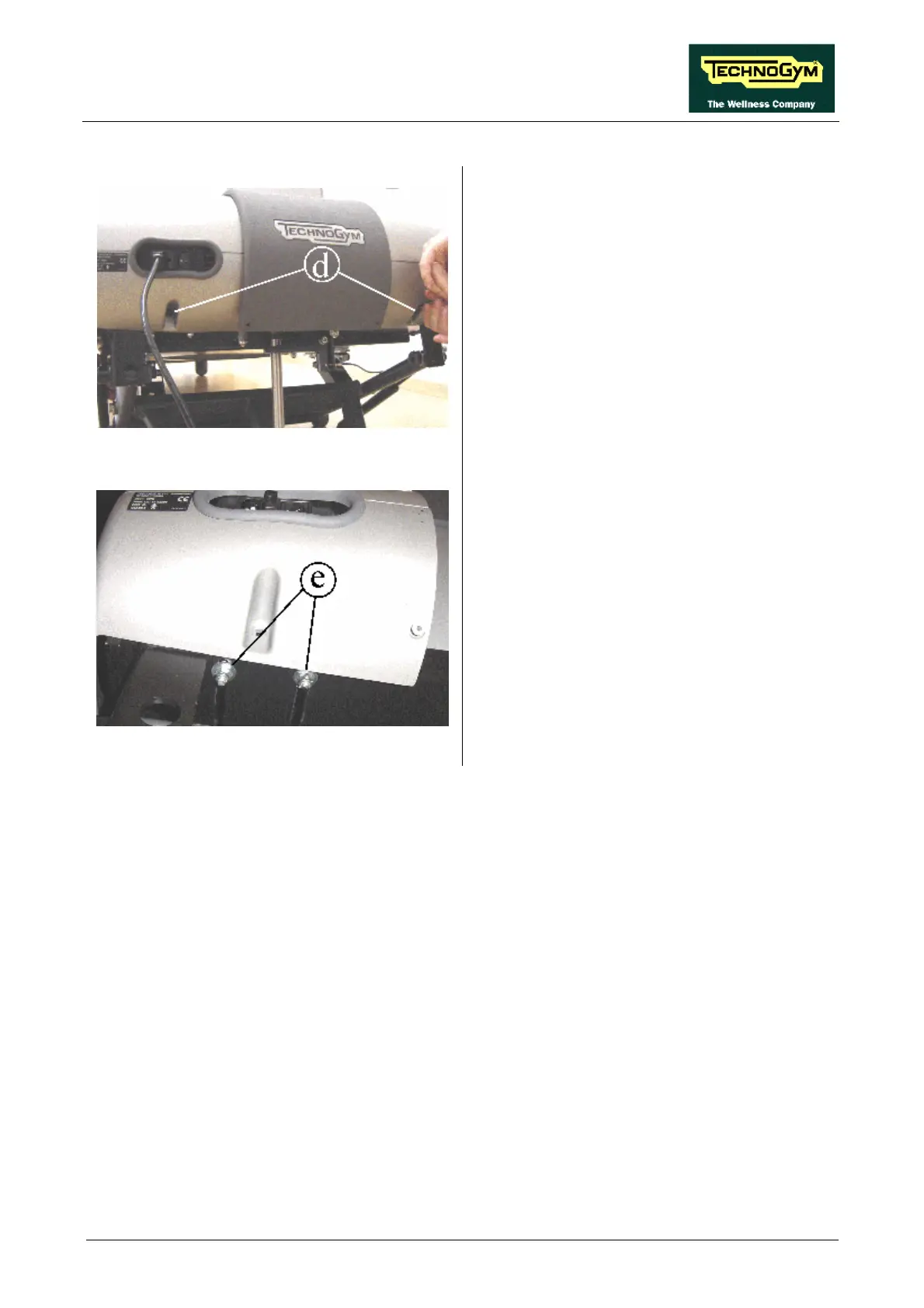

Figure 7.8-4
9. Back off the two screws d using a 4-mm hex
wrench.
Figure 7.8-5
10. Use a 10-mm hex wrench to back off the two
nuts e securing the power inlet block and
push it toward the inside of the machine.
11. Remove the MOTOR GUARD by rotating it
toward the right and pulling it out from the
top.
To reassemble the MOTOR GUARD, carry out
the above steps in reverse order.
