SPAZIO FORMA: Service & Maintenance manual - rev. 1.0
Page 6.4

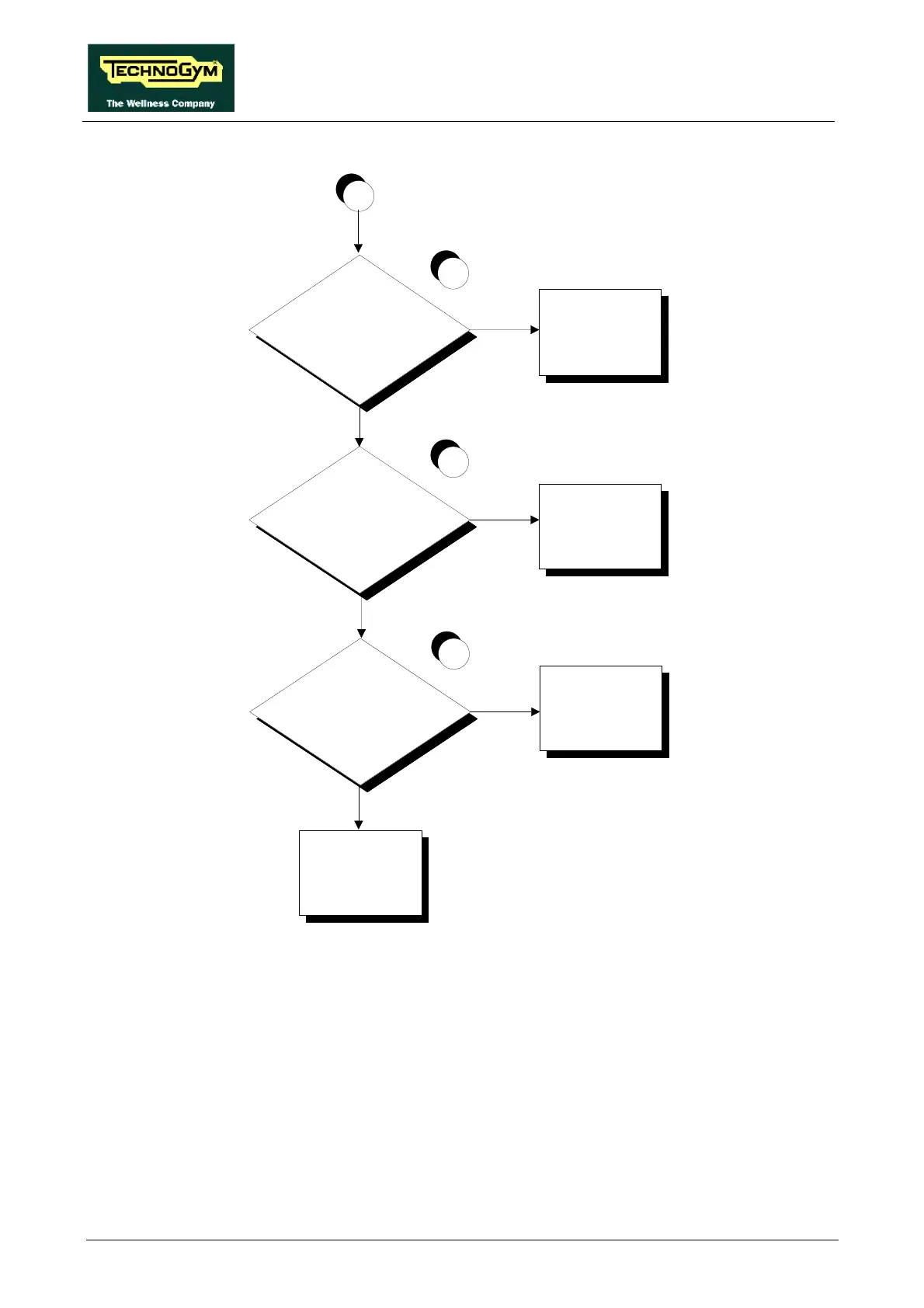

Are all DC v oltages present at the
f ree connector CN28?
7
YES
NO
Replace cable SF-12
Replace cable
SF-21A
Replace CPU board
YES
Do all DC v oltages reach the
display ?
8
NO
C
Replace driv er board
NO
Are all DC v oltages present at the
output of the driv er board?
6
YES
Continued on the following page.
