Is the transmitter in good
working order?
Use a known good
transmitter
YES
NO
5
Is the transmitter alway s within
a distance of 80 cm f rom the
receiv er?
NO
Keep the transmitter
within the minimum
reception distance
YES
Change the receiv er
A
Follow the procedure step by step to correctly diagnose the problem. Take particular care with the
checks highlighted by circled numbers, which are described in detail below:
(1) See paragraph 5.1. “Specifications and requirements”.
(2) See paragraph 11.1. “Technical notes on cardio receivers”.
(3) See paragraph 11.1. “Technical notes on cardio receivers”.
(4) To check for electromagnetic noise near the machine, use a frequency signal monitor

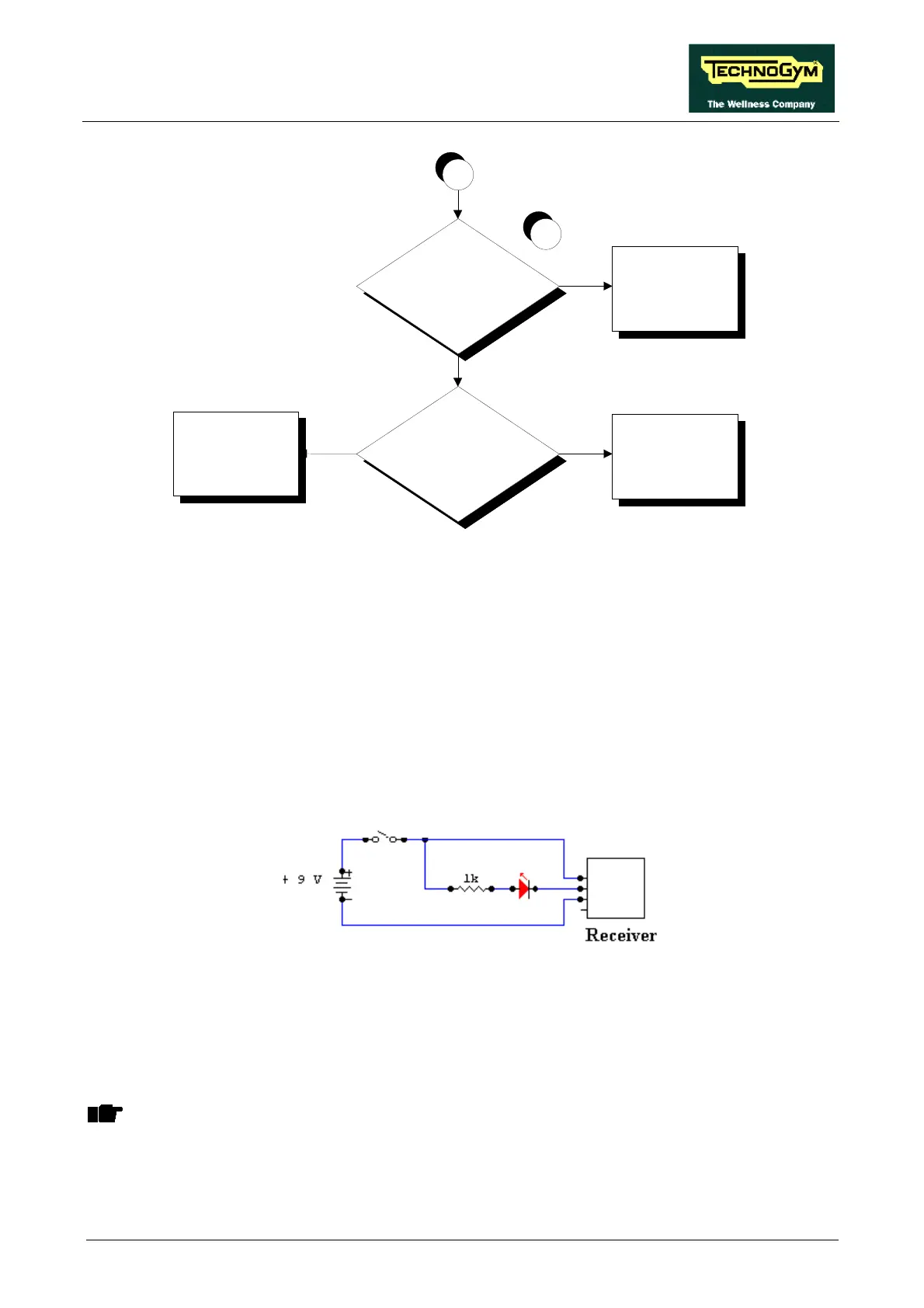

constructed as shown in the schematic below:
The circuit lights the LED for every heart beat and/or disturbance that is received: in this way
it possible to determine whether there is any interference, and identify its sources.
(5) Check the battery power level, using a tester if possible. Otherwise use a receiver or another
“reference” machine to check operation up to a distance of about 80 cm from the receiver.
ATTENTION: Consult paragraph 11.1. “Technical notes on cardio receivers”.
