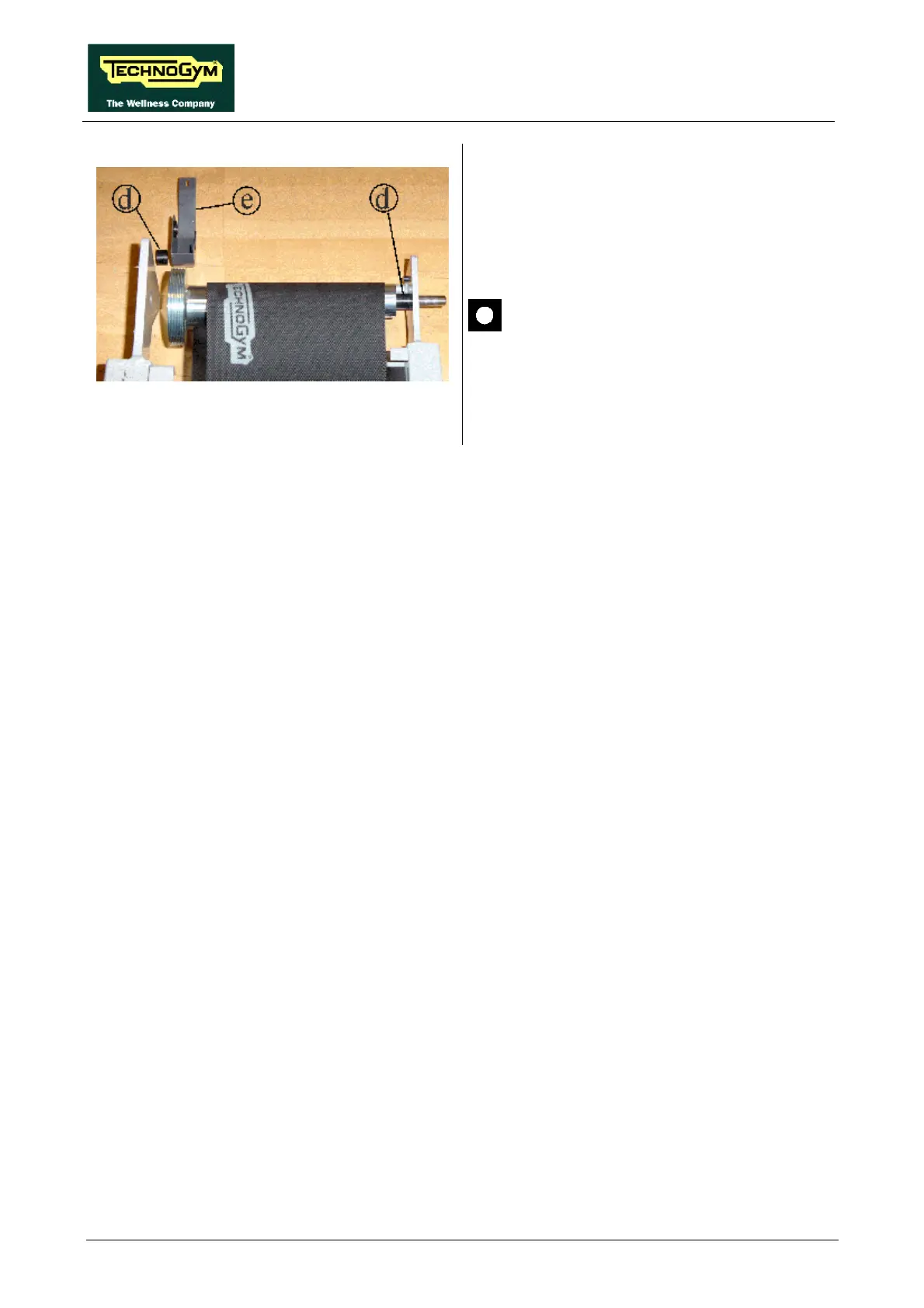

Figure 7.12-4
To reassemble the MOTOR ROLLER and the
DRIVE-BELT, carry out the above steps in
reverse order, remembering to first insert the belt
on the roller pulley, followed by guard e and
finally the two bushings d.
After completing this procedure, adjust
the tension and centering of the tread-
belt as described in paragraphs 8.2. and
8.3. and adjust the tension and
alignment of the DRIVE-BELT as
described in paragraph 8.4.
