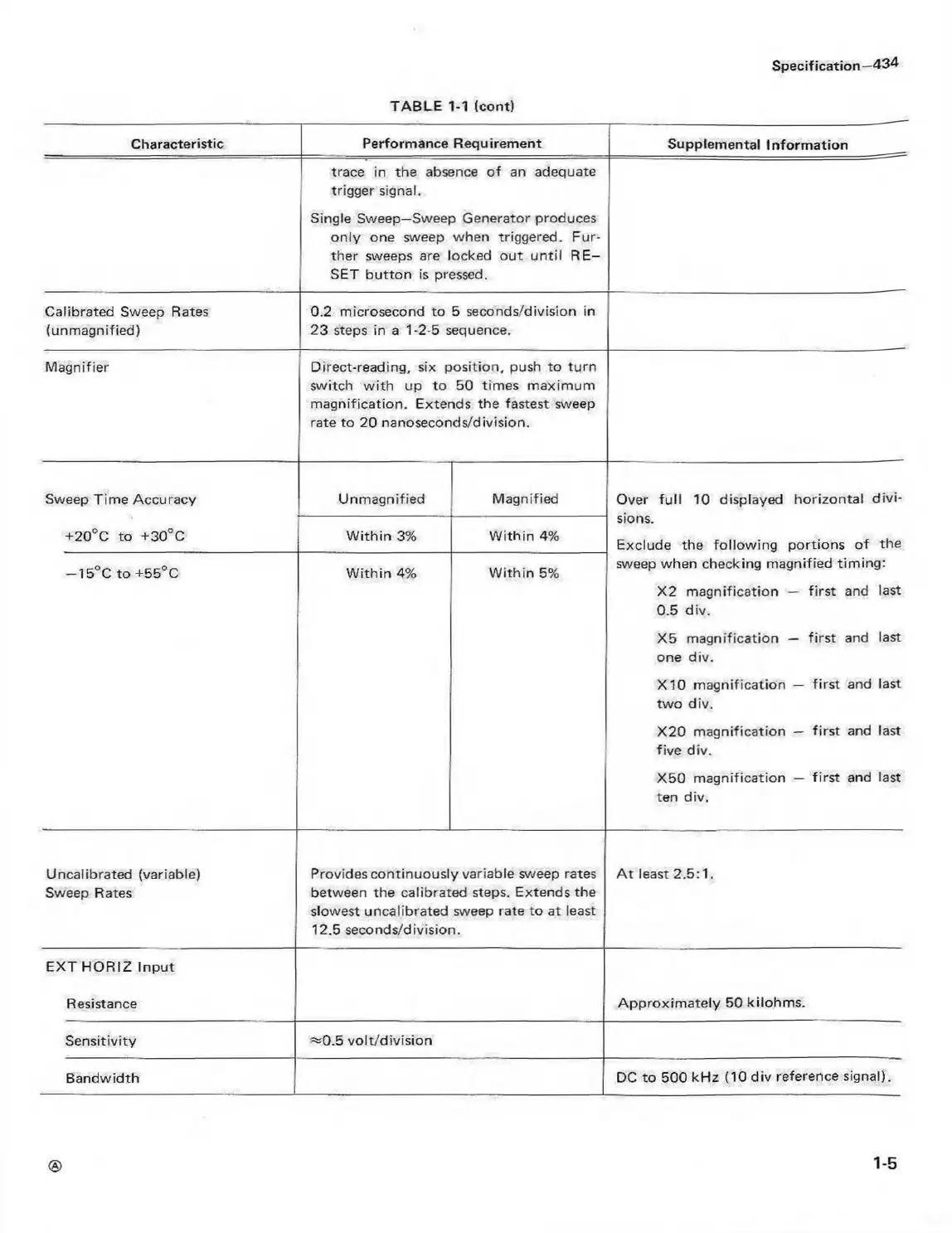

Specification—434
TABLE 1-1 (cont)
Characteristic
Performance Requirement
Supplemental Inform ation
trace in the absence of an adequate
trigger signal.
Single Sweep—Sweep Generator produces
only one sweep when triggered. Fur
ther sweeps are locked out until R E -
SET button is pressed.
Calibrated Sweep Rates
0.2 microsecond to
5 seconds/division in
(unmagnified)
23 steps in a 1-2-5 sequence.
Magnifier
Direct-reading, six position, push to turn
switch w ith up to 50 times maximum
magnification. Extends the fastest sweep
rate to 20 nanoseconds/division.
Sweep Time Accuracy
Unmagnified Magnified Over fu ll 10 displayed horizontal divi-
+20°C to +30°C
W ithin 3% W ithin 4%
sions.
Exclude the follow ing portions of the
— 15°C to +55°C
W ithin 4%
W ithin 5%
sweep when checking magnified timing:
X2 magnification — first and last
0.5 div.
X5 magnification — first and last
one div.
X10 magnification — first and last
two div.
X20 magnification — first and last
five div.
X50 magnification — first and last
ten div.
Uncalibrated (variable)
Sweep Rates
Provides continuously variable sweep rates
between the calibrated steps. Extends the
slowest uncalibrated sweep rate to at least
12.5 seconds/division.
A t least 2.5:1.
EXT HORIZ Input
Resistance
Approxim ately 50 kilohms.
Sensitivity
=«0.5 volt/division
Bandwidth
DC to 500 kHz (10 div reference signal).
1-5
